1. Air Cleanliness

Airborne particulate control is the defining function of any cleanroom. ISO 14644-1 establishes allowable particle concentration thresholds per cubic meter across nine classification tiers. At ISO Class 5, for example, no more than 3,520 particles ≥0.5μm may exist per cubic meter — a specification achieved through staged mechanical filtration terminating at HEPA (99.97% efficiency at 0.3μm) or ULPA (99.9995% at 0.12μm) terminal filters.

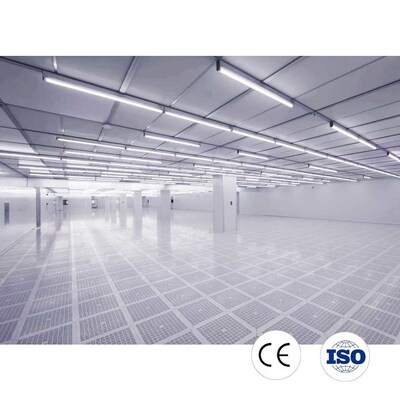

2. Airflow Architecture

Cleanroom airflow falls into three established regimes. Unidirectional (laminar) flow delivers a uniform velocity of 0.30–0.45 m/s across the entire cross-section, ideal for ISO Class 1–5 environments. Non-unidirectional (turbulent) dilution mixing suffices for Class 6–9 spaces. Mixed-flow designs combine both, placing laminar zones over critical tools while maintaining turbulent dilution in surrounding areas.

3. Temperature & Humidity

Process-defined environmental windows dictate the thermal-humidity control specification. Semiconductor photolithography typically demands 22°C ±0.5°C and 45% ±3% RH to prevent resist dimensional changes. Pharmaceutical powder handling may require ≤35% RH to avoid hygroscopic clumping. The HVAC system delivers these setpoints through chilled water coils, electric or steam reheat, and adiabatic or steam humidification.

4. Room Pressurization

Pressure differentials between adjacent spaces form the primary contamination migration barrier. A minimum 5 Pa positive offset is maintained from clean to less-clean zones, typically cascading outward: ISO Class 5 → Class 7 → Class 8 → uncontrolled. Negative-pressure containment is reserved for biohazard or potent compound handling. Active differential pressure sensors modulate VAV dampers to compensate for door openings and filter loading.

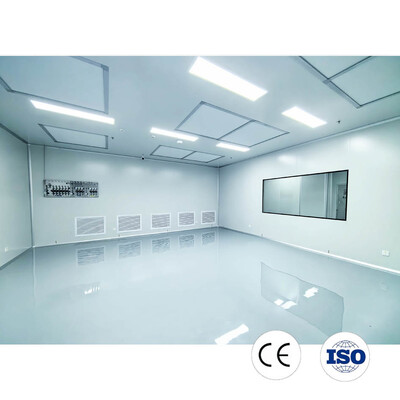

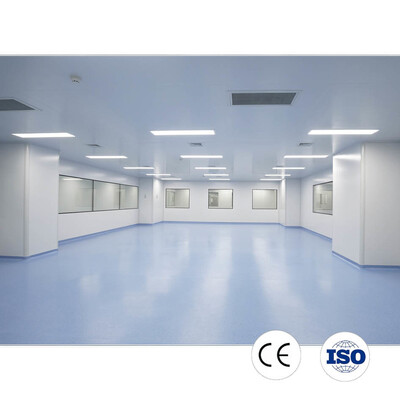

5. Structural Envelope

The physical boundary consists of factory-fabricated modular panels — typically aluminum honeycomb or PU foam core sandwiched between galvanized steel or stainless steel skins. Panel joints are sealed with neutral-cure silicone, and wall-to-floor transitions employ integral cove bases with a minimum 25 mm radius. Ceiling grids support HEPA housings, lighting, and utility drops while maintaining plenum seal integrity.

6. Electrostatic Mitigation

ESD-sensitive processes require controlled static dissipation. Conductive or static-dissipative flooring materials — epoxy, PVC sheet, or raised access panels — provide a path-to-ground resistance between 2.5×10⁴ and 1×10⁹ Ω. Personnel grounding is achieved via wrist straps and conductive footwear tested at entry. Combined with humidity maintained above 35% RH, these measures prevent triboelectric charge accumulation.

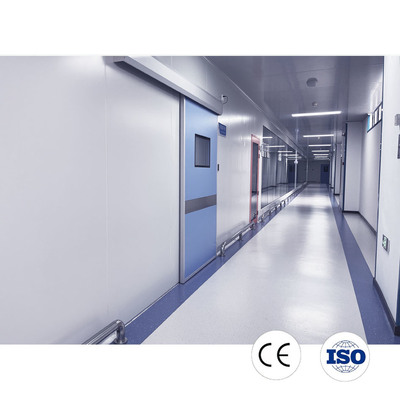

7. Material & Personnel Transfer

Contamination ingress control starts at the boundary. Air showers deliver 20–28 m/s jets for 15–30 seconds to dislodge surface particles from garments. Pass-through chambers incorporate interlocked doors and optional UV-C germicidal irradiation. Staged gowning — street clothes → clean undergarments → coverall → hood → booties → gloves — progressively reduces the bioburden and particulate load entering the controlled space.

8. Continuous Monitoring

ISO 14644-2 and EU GMP Annex 1 mandate ongoing environmental surveillance. Discrete particle counters sample at critical locations on a defined frequency. Active air samplers capture viable organisms onto agar plates for incubation and CFU enumeration. All instruments communicate via 4–20 mA or Modbus to a BMS/EMS historian, generating tamper-evident records compliant with 21 CFR Part 11 and EU Annex 11 data integrity requirements.

9. Energy Management

Cleanroom HVAC accounts for 50–70% of facility energy consumption. Demand-controlled ventilation reduces air recirculation rates during unoccupied periods. Run-around coil loops and rotary enthalpy wheels recover 60–80% of exhaust thermal energy. Fan arrays with EC or VFD motors allow turndown to 30% of design airflow without surging, enabling significant annual OPEX reduction.

10. Validation Lifecycle

Regulatory compliance is demonstrated, not assumed. Installation Qualification (IQ) verifies correct component specification and installation. Operational Qualification (OQ) confirms system performance across defined operating ranges. Performance Qualification (PQ) proves the installed system meets process requirements under loaded conditions. Requalification follows a risk-based schedule — typically semi-annual for aseptic facilities and annual for non-sterile operations.
