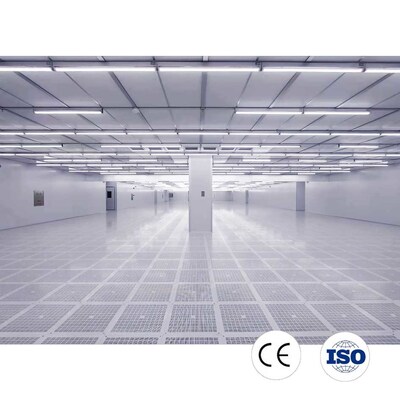

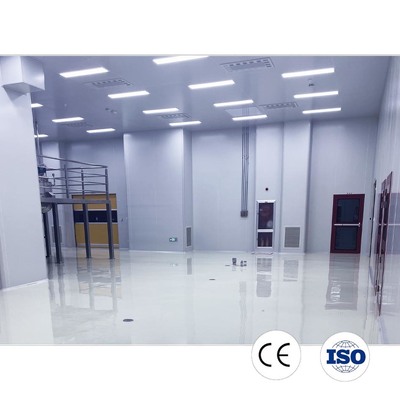

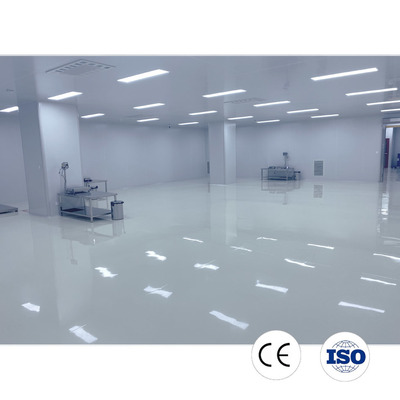

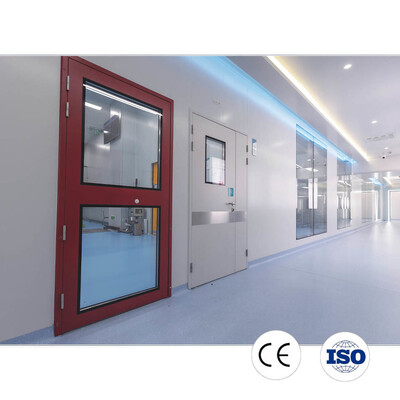

High Performance Dust-Free Prefabricated Cleanrooms Workshop With Smart Environmental Control For Precision Assembly
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
High Performance prefabricated cleanrooms
,Dust-Free prefabricated cleanrooms
,modular design clean room Workshop
High Performance Dust-Free Prefabricated Cleanrooms Workshop With Smart Environmental Control For Precision Assembly
Product Overview
Technical Specifications
| Item | Specification |
| Cleanroom Classification | ISO 5-ISO 8 |
| Panel Material | Rock Wool Sandwich Panel |
| Panel Thickness | 50mm/75mm/100mm |
| Filtration System | HEPA H13 / H14 |
| Airflow Design | Laminar or Turbulent |
| Temperature Control | Customized |
| Humidity Control | Customized |
| Pressure Control | Positive / Negative |
| Lighting Level | Customized |
| Power Supply | Customized |
Cleanroom Core Functions
- Multistage Filtration (HEPA/ULPA) Achieving ISO Class 1-9 environments through high-velocity air exchange and ultra-low penetration filters.
- Micro-Climate Regulation Integrated HVAC systems with VFD controls for ultra-narrow tolerance in temperature and moisture.
- Airtight Gradient Management Cascading pressure control (up to 50Pa) prevents air backflow and cross-zone contamination.
- Structural Sealing & Insulation High-density rockwool core panels provide superior thermal insulation and structural rigidity.
- Autonomous Monitoring System Sensor-driven analytics for real-time tracking of VOCs, particles, and environmental variables.
Cleanroom Applications
Pharmaceutical & Biotechnology
Modular cleanroom systems can be configured for pharmaceutical and biotechnology applications requiring controlled airborne contamination, environmental conditions and pressure relationships.
Laboratory & R&D
Prefabricated cleanrooms can be adapted for laboratory, testing and research environments according to the required cleanliness classification and process conditions.
Electronics & Semiconductor
Cleanroom configurations can support electronics and precision manufacturing processes where airborne particle and environmental control are important.
Medical & Healthcare
Cleanroom systems can be configured for selected medical, healthcare and controlled production environments according to applicable project requirements.
Integrated Cleanroom System Components
Full Cleanroom System Supply Scope
SHP offers a complete supply chain for cleanroom projects, including prefabricated cleanroom panels, HVAC systems, filtration units and smart monitoring components for turnkey implementation.
The following illustration presents the core systems and products supplied within SHP cleanroom projects.
Mauritius Project
Pharmaceutical Cleanroom Project – Mauritius
Project Overview
SHP successfully completed a turnkey pharmaceutical cleanroom project in Mauritius, providing design, manufacturing, HVAC installation, commissioning and validation services for the customer.
Project Information
| Item | Details |
| Location | Mauritius |
| Industry | Pharmaceutical Manufacturing |
| Solution | Turnkey Cleanroom Project |
| Scope | Design, HVAC, Installation, Validation |
| Cleanroom Class | ISO 7 |
| Status | Successfully Delivered |
Project Challenges
The customer required a GMP-compliant production environment with strict control of airborne particles, temperature, humidity and differential pressure to support pharmaceutical manufacturing operations.
SHP Solution
- Modular cleanroom panel system
- Air handling unit (AHU) system
- HEPA filtration system
- Environmental monitoring system
- Pressure control system
Cleanroom Construction Progress Record
Cleanroom Panel Delivery and Material Preparation
Cleanroom wall and ceiling panels were delivered to the project site and organized according to the installation schedule. All materials were inspected before installation to ensure compliance with project specifications and cleanroom construction requirements.
HVAC Ductwork Fabrication and Installation
The HVAC installation team carried out on-site ductwork fabrication and assembly for the cleanroom ventilation system. Proper duct routing and sealing are essential for maintaining airflow uniformity, pressure control and contamination prevention.
Cleanroom Ceiling Grid and Utility Framework Installation
The ceiling suspension system and utility support framework were installed to accommodate cleanroom panels, lighting fixtures, HEPA filtration units and process utilities. This stage forms the structural foundation for the final cleanroom enclosure.
Project Completion
Cleanroom installation completed according to the project scope.
HVAC installation and commissioning completed.
Cleanroom performance testing conducted.
Validation and project acceptance completed according to the documented project requirements.
AVB Testing Report
Third-Party Performance Testing & Validation
To verify cleanroom performance and environmental control effectiveness, independent testing and validation were conducted after project completion.
Validation Services
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
Testing Items
- Airborne Particle Count Test
- Airflow Velocity Test
- Differential Pressure Test
- Temperature Test
- Humidity Test
- Illumination Test
- Noise Test
Third-Party Verification
The cleanroom system was tested and documented by an independent testing organization to verify compliance with project specifications and applicable cleanroom standards.
Certifications
SHP operates under a certified quality management system and manufactures cleanroom equipment in accordance with international standards for quality, safety and performance. Our engineering and manufacturing processes are continuously audited to ensure compliance with global cleanroom and HVAC project requirements.
Quality Management System
SHP is certified to ISO 9001:2015 Quality Management System standards, covering the design, manufacturing and installation of cleanroom systems, sandwich panels and air purification equipment.
Certificate: ISO 9001:2015 Quality Management System Certification
CE Certification for Cleanroom Equipment
To support international projects and regulatory compliance, major cleanroom equipment supplied by SHP has been assessed for conformity with applicable European directives related to electrical safety and electromagnetic compatibility.
CE Certified Equipment Includes:
Air Shower Room
Fan Filter Unit (FFU)
Pass Box
CE Certification for Air Shower Room
CE Certification for Fan Filter Unit (FFU)
CE Certification for Pass Box
Commitment to Quality and Compliance
Through certified manufacturing processes, documented quality control procedures and project validation services, SHP ensures that every cleanroom and HVAC solution is delivered in accordance with customer specifications, GMP requirements and international cleanroom standards.
Applicable Standards
ISO 14644 Cleanroom Standards
ISO 9001:2015 Quality Management System
EU Low Voltage Directive (2014/35/EU)
EU Electromagnetic Compatibility Directive (2014/30/EU)
GMP Guidelines for Pharmaceutical Manufacturing
EN1886 Air Handling Unit Standard
Company Profile
About SHP Cleanroom Engineering
SHP is a professional cleanroom engineering company specializing in the design, manufacturing, installation and validation of cleanroom systems for pharmaceutical, biotechnology, medical device, laboratory and electronics industries.
With over 20 years of industry experience, SHP provides complete turnkey cleanroom solutions from concept design to project delivery.
Company Strength
| Item | Data |
| Industry Experience | 20+ Years |
| Completed Projects | 2100+ |
| Countries Served | 40+ |
| Senior Engineers | 12 |
| Quality Certification | ISO 9001:2015 |
Core Products
- Cleanroom Turnkey Projects
- Air Handling Units (AHUs)
- Fan Filter Units (FFUs)
- Air Showers
- Pass Boxes
- Cleanroom Panels
- Cleanroom Doors & Windows
Engineering Services
- Design & Consulting
- Manufacturing
- Installation
- Commissioning
- Validation (DQ / IQ / OQ / PQ)
- After-Sales Support
