Reinforced Structural Modular Cleanroom Enclosure with Flush Glazed Windows for Advanced Industrial Testing
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Detail Information
Place of Origin:
China
Certification:
CE、ISO
Condition:
New
Applicable Industries:
Manufacturing Plant, Food & Beverage Factory, Cosmetics, Electronics, Laboratories, Clean Room, Dust-free Workshop, Hospitals
Machinery Test Report:
Provided
Warranty Of Core Components:
1 Year
Cleanliness:
Class 100 To Class 100,000
HEPA Filter:
99.995%@0.3um Or As Required
Key Words:
Turnkey Solution Clean Room
Application:
Electronics, Food, Hospital
Certificate:
CE ISO
Item Name:
GMP Clean Room
Material:
Rock Wool Sandwich Panel Or Hollow Glass Magnesium Sandwich Panel
Work Scope:
Construction, HVAC, Electric, Process Piping
Packaging Details:
Wooden Case, Galvanized Steel Pallet, Plastic Film
Supply Ability:
≥1 set
Highlight:
Reinforced modular cleanroom enclosure
,Cleanroom enclosure with flush glazed windows
,Industrial testing cleanroom enclosure
Product Description
Product Overview ——Reinforced Structural Modular Cleanroom Enclosure with Flush Glazed Windows for Advanced Industrial Testing
A cleanroom is the foundational infrastructure for precision manufacturing, directly impacting product yield and process stability. A well-engineered cleanroom system eliminates particulate and microbial contamination at the source through multi-stage air purification, optimized airflow distribution, and pressure cascade control — reducing batch rejection rates and enabling 24/7 production reliability.
Cleanroom Description
| Application | Pharmaceutical | Lab | Electronics |
| Cleanliness | China class 100 to 100000 | ISO 5 to 8 | EU B to D |
| Scope |
Structure part; Partition and ceiling panel; door and window,epoxy. |
HVAC part; AHU and chiller; Ducting and piping. |
Electrical part; Lamp,switch and socket; Distribution cabinet. |
| Service | Design and production | Construction and test | Validation and training |
| Wall/ceiling panel | Machine-made or Hand-made sandwich board |
| Clean room equipment | Air shower,FFU,Pass box,Laminar flow cabinet,hepa box |
| Cleanliness | Class 100-100000 |
| Purification system | HVAC, or AC conditioner+FFU |
| Floor | PVC anti-static floor or epoxy-based coating |
| Other addessores | stalinite window,LED panel light,Door,Hand wash sink,storage/shoe cabinet etc |
| Service | Design,manufacturing,construction |
Cleanroom Core Functions
1. Particle Control Every cubic meter of air, scrubbed to ISO standards. HEPA and ULPA filters trap 99.997% of particles at 0.3μm. From ISO Class 9 down to Class 1, we control what you can't see.
2. Air That Moves Right No dead corners. No recirculating dust. Laminar flow sweeps clean air downward at a steady 0.45 m/s. Turbulent mixing dilutes and flushes. The result: contamination never settles where it shouldn't.
3. Climate on Lock Temperature locked to half a degree. Humidity held within a 3% band. Day or night, summer or winter — your process window never drifts.
4. Invisible Walls That Work Air moves from clean to cleaner. 5 to 15 Pascals of positive pressure form an aerodynamic seal around every critical zone. Nothing gets in unless it passes through a filter first.
5. Sealed From the Outside Floor to ceiling, wall to wall — every seam filled, every corner rounded. Zero ledges. Zero gaps. A room that rejects dust by design.
6. Static Under Control No zap. No spark. Conductive floors drain static to ground before it builds. Surface resistance stays in the safe zone. Your wafers and chips stay intact.
7. What Goes In Is Cleaned First People pass through air showers. Materials pass through UV chambers. Nothing crosses the cleanroom threshold without a sanitizing stop along the way.
8. Always Watching Sensors count particles. Probes track pressure, temperature, humidity. Live data feeds the control room. If something drifts, you know before it matters.
9. Smart on Power Fans ramp down when demand drops. Heat wheels reclaim energy from exhaust. Cleanliness never takes a break — but the power bill does.
10. Proven, Not Promised Filter leak tests. Smoke studies. Recovery timing. Temperature mapping. Every system is tested, documented, and certified — not once, but on a schedule that keeps you audit-ready.
Products Description
Pharma,Biotech&Labs
With today's new regulations and growing concernforpublicsecurity,pharmaceutical,biotech and medical device industries need to maintain and upgrad their facilities in order to meet new requirements and regulations.SHP's in-house experts have the necessary experience in designing building and installin cleanrooms and enclosures to be compliant with new standards.And our knowledge and experience cove a wide range such as infusion production, tablet making and vaccine project,etc.
Electronic,Semiconductors&High-tech Industry
SHP designs,manufactures and installs cleanrooms for the semiconductor and high-technology sectors,from optics,photonics to the assembly of electronic components.In these induatries,products are often very sensitive to airborne particulates and must be manufactured in a controlled environment.Inaddition,these industries often require the use of ultra-precise and costly equipment that must be housed and operated in a location where temperature and humidity are maintained at a specific level.

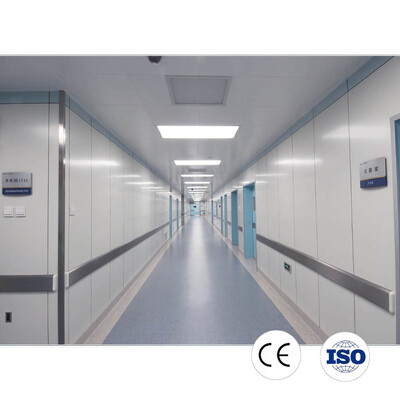

Hospital
SHP designs and installs cleanrooms that can work well for hospital and pharmaceutical applications and are of high quality to meet stringent cleanroom standards.High levels of environmental control are required to protect patients' health.SHP constructs cleanrooms that can incorporate existing structures or stand freely and offers a high level of environmental control including static,pressure,contamination,and humidity control can be designed to comply with even the most stringent medical standards.
Food Processing&Packaging
Food Processing is an industry where product safety,quality,and integrity are paramount.Assuch,cleanrooms are vital in the food manufacturing industry to ensure food product quality and to adhere to GMP(ISO) standards and requirements,In food manufacturing,cleanrooms must generally meet ISO Class 6 standards.We offer a variety of options to meet your application's specific needs,from highly controlled HardWall cleanrooms that can be built to comply with the most stringent classification to SoftWallcleanrooms with a high degree of flexibility thatwork well for food storage and similar uses.
Manufacturing Industry
Authoritative documents such as ISO 14644 provide no specific instructions regarding activities carried out in other manufacturing industry such as medical device enbvironment.Broadly,medical device manufacturing is conducted in an ISO Class 5 cleanroom(Feb.Class 3),while medical device packaging is conducted in an ISO Class 7-8 cleanroom.Guaranteed completion and final compliance testing are among the reasons SHP is a trusted ally of enterprise in this area as well.
