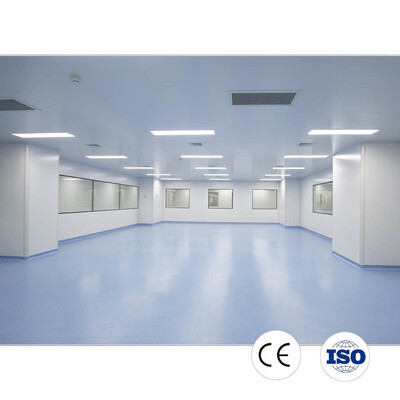

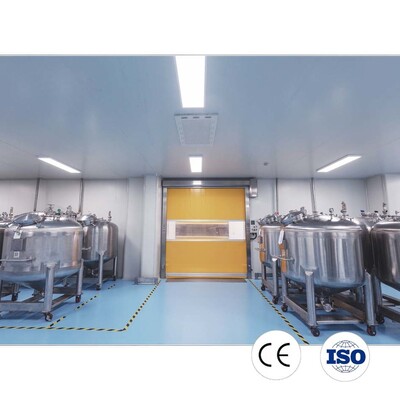

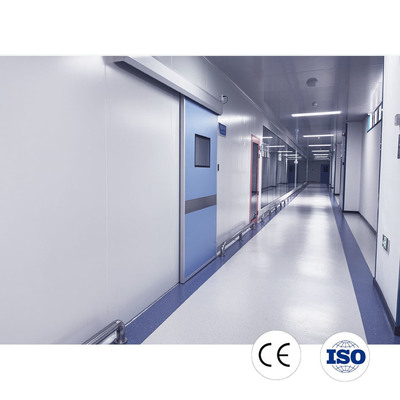

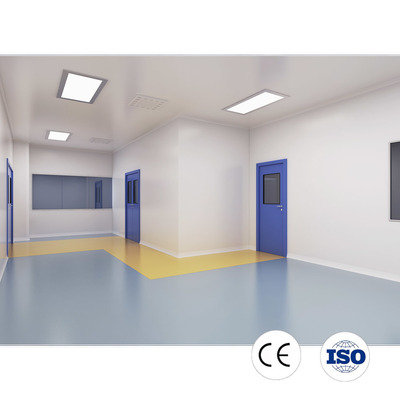

Sustainable Industrial Cleanroom Project With Recyclable Aluminum Framework For High-Tech Research
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Sustainable Industrial Cleanroom Project
,Recyclable Aluminum Framework Cleanroom Project
,High-Tech Research cleanroom
Sustainable Industrial Cleanroom Project With Recyclable Aluminum Framework For High-Tech Research
Product Overview
Cleanroom Description
| Application | Pharmaceutical | Lab | Electronics |
| Cleanliness | Class 100–100000 or applicable ISO/GMP classification | ISO 5–8 or project-specific classification | ISO 5–8 or project-specific classification |
| Scope |
Structure part; Partition and ceiling panel; door and window,epoxy. |
HVAC part; AHU and chiller; Ducting and piping. |
Electrical part; Lamp,switch and socket; Distribution cabinet. |
| Service | Design and production | Construction and test | Validation and training |
| Wall/ceiling panel | Machine-made or Hand-made sandwich board |
| Clean room equipment | Air shower,FFU,Pass box,Laminar flow cabinet,hepa box |
| Cleanliness | Class 100-100000 |
| Purification system | HVAC, or AC conditioner+FFU |
| Floor | PVC anti-static floor or epoxy-based coating |
| Other addessores | stalinite window,LED panel light,Door,Hand wash sink,storage/shoe cabinet etc |
| Service | Design,manufacturing,construction |
Cleanroom Core Functions
1. Total Contamination & Particle Control
-
- Mechanism: Utilizes advanced HEPA (High-Efficiency Particulate Air) or ULPA (Ultra-Low Penetration Air) filtration systems to eliminate airborne particles, skin flakes, and microorganisms invisible to the naked eye.
- Value Proposition: Guarantees compliance with ISO 14644-1 standards (Classes 1-9), preventing micro-short circuits in semiconductors and surface defects in precision optics.
2. Thermal & Humidity Stability (Precision Climate)
-
- Mechanism: High-precision HVAC integration ensures 24/7 environmental stability. Temperature is controlled within a tolerance of ±0.1°C to ±1.0°C, and humidity within ±2% to ±5% RH.
- Value Proposition: Prevents material expansion/contraction and stabilizes chemical reactions, ensuring consistent quality in high-precision manufacturing.
3. Pressure Gradient & Airtight Management
-
- Mechanism: Establishes a cascading pressure gradient (Positive or Negative pressure). Our patented interlocking panel structures ensure superior airtightness, forcing air to flow from high-purity zones to lower-purity zones.
- Value Proposition: Effectively seals the "Core Zone" (e.g., ISO 5 areas) against external cross-contamination and untreated air leakage.
4. Integrated ESD (Electrostatic Discharge) Shielding
-
- Mechanism: Combines anti-static PVC/Epoxy flooring with specialized conductive wall coatings and air ionization technology to neutralize environmental electrical charges.
- Value Proposition: Protects sensitive electronic components from catastrophic failure caused by static buildup, directly increasing your final product yield rates.
5. Advanced Aerodynamic Airflow Optimization
-
- Mechanism: Scientifically designed airflow patterns—including Laminar (Unidirectional) for high-purity zones and Turbulent (Non-unidirectional) for general clean zones—to rapidly flush out generated contaminants.
- Value Proposition: Eliminates "dead zones" and air turbulence within the workspace, ensuring the environment remains clean even during high-intensity production.
6. Industry 4.0 Digital Monitoring & Traceability
-
- Mechanism: Features an integrated smart control console with high-sensitivity sensor arrays. Real-time data on pressure, particles, and climate are recorded and can be accessed remotely via cloud dashboards.
- Value Proposition: Provides the full data traceability required by top-tier global buyers and international compliance audits (FDA/GMP/ISO).
Cleanroom Applications
Pharmaceutical & Biotechnology
Modular cleanroom systems can be configured for pharmaceutical and biotechnology applications requiring controlled airborne contamination, environmental conditions and pressure relationships.
Laboratory & R&D
Prefabricated cleanrooms can be adapted for laboratory, testing and research environments according to the required cleanliness classification and process conditions.
Electronics & Semiconductor
Cleanroom configurations can support electronics and precision manufacturing processes where airborne particle and environmental control are important.
Medical & Healthcare
Cleanroom systems can be configured for selected medical, healthcare and controlled production environments according to applicable project requirements.
Integrated Cleanroom System Components
Integrated Cleanroom Systems and Component Supply
SHP delivers an integrated supply scope covering recyclable aluminum-framed cleanroom panels, ceiling systems, HVAC systems and cleanroom doors, supporting turnkey cleanroom project implementation.
The following image shows the major systems and products commonly integrated into SHP cleanroom projects.
Mauritius Project
Pharmaceutical Cleanroom Project – Mauritius
Project Overview
SHP successfully completed a turnkey pharmaceutical cleanroom project in Mauritius, providing design, manufacturing, HVAC installation, commissioning and validation services for the customer.
Project Information
| Item | Details |
| Location | Mauritius |
| Industry | Pharmaceutical Manufacturing |
| Solution | Turnkey Cleanroom Project |
| Scope | Design, HVAC, Installation, Validation |
| Cleanroom Class | ISO 7 |
| Status | Successfully Delivered |
Project Challenges
The customer required a GMP-compliant production environment with strict control of airborne particles, temperature, humidity and differential pressure to support pharmaceutical manufacturing operations.
SHP Solution
- Modular cleanroom panel system
- Air handling unit (AHU) system
- HEPA filtration system
- Environmental monitoring system
- Pressure control system
Cleanroom Construction Progress Record
Cleanroom Panel Delivery and Material Preparation
Cleanroom wall and ceiling panels were delivered to the project site and organized according to the installation schedule. All materials were inspected before installation to ensure compliance with project specifications and cleanroom construction requirements.
HVAC Ductwork Fabrication and Installation
The HVAC installation team carried out on-site ductwork fabrication and assembly for the cleanroom ventilation system. Proper duct routing and sealing are essential for maintaining airflow uniformity, pressure control and contamination prevention.
Cleanroom Ceiling Grid and Utility Framework Installation
The ceiling suspension system and utility support framework were installed to accommodate cleanroom panels, lighting fixtures, HEPA filtration units and process utilities. This stage forms the structural foundation for the final cleanroom enclosure.
Project Completion
Cleanroom installation completed according to the project scope.
HVAC installation and commissioning completed.
Cleanroom performance testing conducted.
Validation and project acceptance completed according to the documented project requirements.
AVB Testing Report
Third-Party Performance Testing & Validation
To verify cleanroom performance and environmental control effectiveness, independent testing and validation were conducted after project completion.
Validation Services
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
Testing Items
- Airborne Particle Count Test
- Airflow Velocity Test
- Differential Pressure Test
- Temperature Test
- Humidity Test
- Illumination Test
- Noise Test
Third-Party Verification
The cleanroom system was tested and documented by an independent testing organization to verify compliance with project specifications and applicable cleanroom standards.
Certifications
SHP operates under a certified quality management system and manufactures cleanroom equipment in accordance with international standards for quality, safety and performance. Our engineering and manufacturing processes are continuously audited to ensure compliance with global cleanroom and HVAC project requirements.
Quality Management System
SHP is certified to ISO 9001:2015 Quality Management System standards, covering the design, manufacturing and installation of cleanroom systems, sandwich panels and air purification equipment.
Certificate: ISO 9001:2015 Quality Management System Certification
CE Certification for Cleanroom Equipment
To support international projects and regulatory compliance, major cleanroom equipment supplied by SHP has been assessed for conformity with applicable European directives related to electrical safety and electromagnetic compatibility.
CE Certified Equipment Includes:
Air Shower Room
Fan Filter Unit (FFU)
Pass Box
CE Certification for Air Shower Room
CE Certification for Fan Filter Unit (FFU)
CE Certification for Pass Box
Commitment to Quality and Compliance
Through certified manufacturing processes, documented quality control procedures and project validation services, SHP ensures that every cleanroom and HVAC solution is delivered in accordance with customer specifications, GMP requirements and international cleanroom standards.
Applicable Standards
ISO 14644 Cleanroom Standards
ISO 9001:2015 Quality Management System
EU Low Voltage Directive (2014/35/EU)
EU Electromagnetic Compatibility Directive (2014/30/EU)
GMP Guidelines for Pharmaceutical Manufacturing
EN1886 Air Handling Unit Standard
Company Profile
About SHP Cleanroom Engineering
SHP is a professional cleanroom engineering company specializing in the design, manufacturing, installation and validation of cleanroom systems for pharmaceutical, biotechnology, medical device, laboratory and electronics industries.
With over 20 years of industry experience, SHP provides complete turnkey cleanroom solutions from concept design to project delivery.
Company Strength
| Item | Data |
| Industry Experience | 20+ Years |
| Completed Projects | 2100+ |
| Countries Served | 40+ |
| Senior Engineers | 12 |
| Quality Certification | ISO 9001:2015 |
Core Products
- Cleanroom Turnkey Projects
- Air Handling Units (AHUs)
- Fan Filter Units (FFUs)
- Air Showers
- Pass Boxes
- Cleanroom Panels
- Cleanroom Doors & Windows
Engineering Services
- Design & Consulting
- Manufacturing
- Installation
- Commissioning
- Validation (DQ / IQ / OQ / PQ)
- After-Sales Support
