Turnkey Advanced Cleanroom Solutions Pharmaceutical Food Industry Hospital Medical Device
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
turnkey advanced cleanroom solutions
,pharmaceutical advanced cleanroom solutions
,food industry class 1000 clean room
Turnkey Advanced Cleanroom Solutions Pharmaceutical Food Industry Hospital Medical Device
Product Overview
A cleanroom is a precision-engineered environment in which the concentration of airborne particulates is controlled to specified limits, primarily through high-efficiency air filtration, regulated airflow, pressure differentials, and temperature/humidity control. Its performance is classified according to international standards such as ISO 14644-1.
Mauritius Project
Pharmaceutical Cleanroom Project – Mauritius
Project Overview
SHP successfully completed a turnkey pharmaceutical cleanroom project in Mauritius, providing design, manufacturing, HVAC installation, commissioning and validation services for the customer.
Project Information
| Item | Details |
| Location | Mauritius |
| Industry | Pharmaceutical Manufacturing |
| Solution | Turnkey Cleanroom Project |
| Scope | Design, HVAC, Installation, Validation |
| Cleanroom Class | ISO 7 |
| Status | Successfully Delivered |
Project Challenges
The customer required a GMP-compliant production environment with strict control of airborne particles, temperature, humidity and differential pressure to support pharmaceutical manufacturing operations.
SHP Solution
- Modular cleanroom panel system
- Air handling unit (AHU) system
- HEPA filtration system
- Environmental monitoring system
- Pressure control system
Cleanroom Construction Progress Record
Cleanroom Panel Delivery and Material Preparation
Cleanroom wall and ceiling panels were delivered to the project site and organized according to the installation schedule. All materials were inspected before installation to ensure compliance with project specifications and cleanroom construction requirements.
HVAC Ductwork Fabrication and Installation
The HVAC installation team carried out on-site ductwork fabrication and assembly for the cleanroom ventilation system. Proper duct routing and sealing are essential for maintaining airflow uniformity, pressure control and contamination prevention.
Cleanroom Ceiling Grid and Utility Framework Installation
The ceiling suspension system and utility support framework were installed to accommodate cleanroom panels, lighting fixtures, HEPA filtration units and process utilities. This stage forms the structural foundation for the final cleanroom enclosure.
Project Completion
Cleanroom installation completed according to the project scope.
HVAC installation and commissioning completed.
Cleanroom performance testing conducted.
Validation and project acceptance completed according to the documented project requirements.
AVB Testing Report
Third-Party Performance Testing & Validation
To verify cleanroom performance and environmental control effectiveness, independent testing and validation were conducted after project completion.
Validation Services
- Design Qualification (DQ)
- Installation Qualification (IQ)
- Operational Qualification (OQ)
- Performance Qualification (PQ)
Testing Items
- Airborne Particle Count Test
- Airflow Velocity Test
- Differential Pressure Test
- Temperature Test
- Humidity Test
- Illumination Test
- Noise Test
Third-Party Verification
The cleanroom system was tested and documented by an independent testing organization to verify compliance with project specifications and applicable cleanroom standards.
Cleanroom Description
| Application | Pharmaceutical | Lab | Electronics |
| Cleanliness | Class 100–100000 or applicable ISO/GMP classification | ISO 5–8 or project-specific classification | ISO 5–8 or project-specific classification |
| Scope |
Structure part; Partition and ceiling panel; door and window,epoxy. |
HVAC part; AHU and chiller; Ducting and piping. |
Electrical part; Lamp,switch and socket; Distribution cabinet. |
| Service | Design and production | Construction and test | Validation and training |
| Wall/ceiling panel | Machine-made or Hand-made sandwich board |
| Clean room equipment | Air shower,FFU,Pass box,Laminar flow cabinet,hepa box |
| Cleanliness | Class 100-100000 |
| Purification system | HVAC, or AC conditioner+FFU |
| Floor | PVC anti-static floor or epoxy-based coating |
| Other addessores | stalinite window,LED panel light,Door,Hand wash sink,storage/shoe cabinet etc |
| Service | Design,manufacturing,construction |
Features at a Glance
Guarantee Purity: By actively filtering and managing air to eliminate process-critical contaminants.
Ensure Consistency: By locking in precise and stable physical conditions for repeatable outcomes.
Enforce Separation: By creating controlled zones through pressure differentials and physical barriers.
Mitigate Human Factors: By mandating specialized attire, workflows, and behaviors to reduce personnel-borne risks.
Deliver Certainty: Through unbroken monitoring and validation that proves the environment's integrity.
Cleanroom Applications
Pharmaceutical & Biotechnology
Modular cleanroom systems can be configured for pharmaceutical and biotechnology applications requiring controlled airborne contamination, environmental conditions and pressure relationships.
Laboratory & R&D

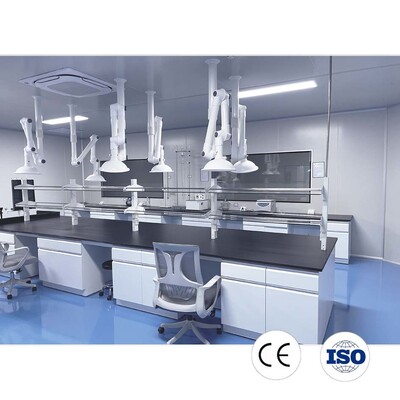

Prefabricated cleanrooms can be adapted for laboratory, testing and research environments according to the required cleanliness classification and process conditions.
Electronics & Semiconductor
Cleanroom configurations can support electronics and precision manufacturing processes where airborne particle and environmental control are important.
Medical & Healthcare
Cleanroom systems can be configured for selected medical, healthcare and controlled production environments according to applicable project requirements.
Integrated Cleanroom System Components
Full Cleanroom System Supply Scope
SHP offers a complete supply chain for cleanroom projects, including cleanroom panels, HVAC systems, HEPA filtration, pass boxes and cleanroom doors for pharmaceutical, food and hospital applications for turnkey implementation.
The following illustration presents the core systems and products supplied within SHP cleanroom projects.
Company Profile
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Customers
Project Delivery & Export Documentation
Cleanroom Project Material Delivery
These photos show how the cleanroom project materials were packed, container loaded and shipped overseas by SHP.
The shipment included cleanroom sandwich panels, HVAC units, doors and windows prepared for overseas installation.
