HVAC System AHU Modular Air Handling Unit with and Airflow Range of 2000-70000

Product Overview

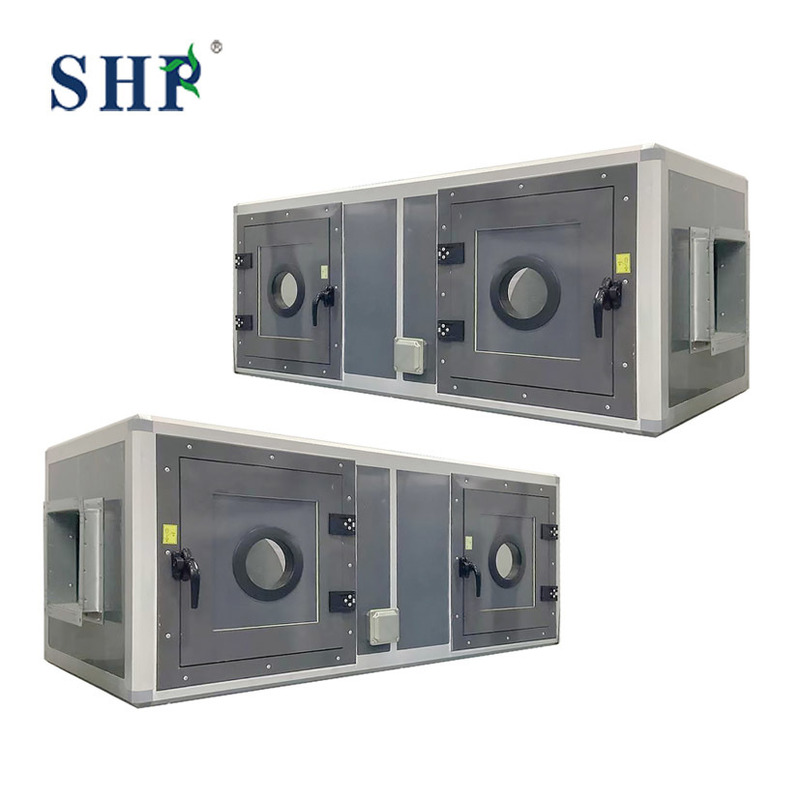

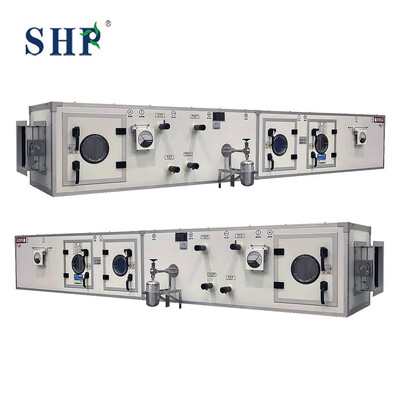

Modular Air Handling Unit

Key Characteristics&Core Functions

• Cleanroom HVAC Applications

  ---

  Application	Typical AHU Function
  Pharmaceutical Cleanrooms	Temperature, humidity and filtered-air supply
  Medical Device Facilities	Controlled air conditioning and ventilation
  Electronics Manufacturing	Environmental and particulate-control support
  Laboratories	Stable temperature and humidity control
  Cosmetic Manufacturing	Conditioned and filtered air supply
  Hospitals	HVAC air treatment for controlled areas

  Technical Specifications

  ---

  Air Volume	2000–60000 m³/h
  Cooling Capacity	2.0–12.6 kW
  External Static Pressure	200–800 Pa
  Air Filtration	G4 Pre-filter + F8 Medium Filter + H13 HEPA
  Casing Material	Double-skin Galvanized Steel Sheet (PU Insulated)
  Coil Material	Copper Tube with Aluminum Fins
  Fan Type	Centrifugal Plug Fan (EC/AC)
  Fresh Air Ratio	20%–30%
  Power Supply	380V / 50Hz / 3Ph
  Refrigerant	R134a
  Control System	PLC + HMI with BMS Interface

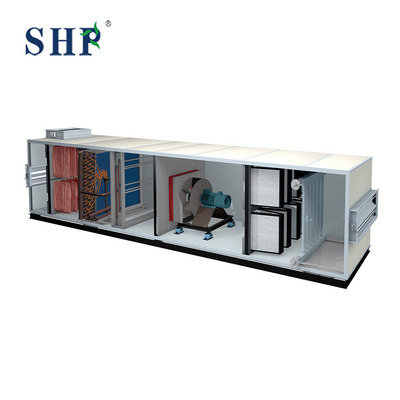

  AHU Configuration & Components

  ---

  Main AHU Components

  • Fresh Air / Return Air Section
    Controls the introduction and recirculation of air according to the HVAC design.
  • Pre-Filtration Section
    Removes larger airborne particles before air enters the finer filtration stages.
  • Cooling Coil
    Removes sensible and latent heat from the air. It can be connected to a chilled-water system or other specified cooling source.
  • Heating Section
    Provides heating when required for temperature control or winter operation.
  • Humidification / Dehumidification
    Configured when the cleanroom process requires tighter humidity control.
  • Fan Section
    Provides the required airflow and static pressure for the downstream air distribution system.
  • HEPA Filtration
    Can be incorporated where the system design requires high-efficiency final filtration.
  • Control Section
    Monitors and regulates operating parameters such as temperature, humidity, fan status, and differential pressure.

  Airflow & Filtration System

  ---

  Fresh / Return Air
  ↓
  Pre-Filter
  ↓
  Fine Filter
  ↓
  Cooling / Heating Coil
  ↓
  Fan Section
  ↓
  HEPA Filter*
  ↓
  Cleanroom Air Distribution

  HEPA filter location depends on the cleanroom HVAC design. In some systems, final HEPA filtration is installed at the terminal FFU or ceiling level rather than directly inside the AHU

  Temperature & Humidity Control

  ---

  The AHU can be configured to support temperature and humidity control through cooling coils, heating sections, humidification and dehumidification functions. Control parameters are selected according to the cleanroom process, product requirements, outdoor conditions and HVAC design.

  • Supply air temperature
  • Return air temperature
  • Relative humidity
  • Cooling coil
  • Heating coil
  • Humidifier
  • Dehumidification
  • Sensors
  • PLC/HMI

  HVAC System Integration

  ---

  The Clean Room AHU can be integrated with:

  • Chilled Water Chiller
  • Chilled Water Pumps
  • Cooling Towers, where applicable
  • Ductwork
  • HEPA Filters
  • FFUs
  • Cleanroom Terminal Units
  • Differential Pressure Monitoring
  • Temperature & Humidity Sensors
  • BMS

  The AHU primarily conditions and supplies air, while terminal filtration and airflow distribution are determined by the overall cleanroom HVAC design.

  Engineering & Selection Process

  ---

  Engineering & Selection Process

  • 1. Requirement Analysis
    Review cleanroom classification, room volume, occupancy, process heat load, outdoor air requirements, temperature and humidity targets.
  • 2. Airflow Calculation
    Determine supply and return airflow based on room requirements, air-change strategy, pressure relationships and process requirements.
  • 3. AHU Selection
    Select airflow capacity, static pressure, cooling/heating capacity, filtration stages, fan type and control configuration.
  • 4. System Integration
    Coordinate AHU with chillers, pumps, ductwork, HEPA filters, FFUs, sensors and BMS.
  • 5. Manufacturing
    Manufacture the AHU according to the approved configuration and technical specifications.
  • 6. Testing & Commissioning
    Perform applicable factory inspection and support on-site commissioning according to the project scope.

  Related Cleanroom Project Experience

  ---

  Pharmaceutical Cleanroom Project – Mauritius

  • Application: Pharmaceutical manufacturing
  • Scope: HVAC system design / AHU integration / installation support
  • Country: Mauritius

  Exceptional Air Filtration Capability

• Stringent Airflow & Pressure Differential Control
• Precise Temperature & Humidity Control
• Superior Airtightness & Construction Materials
• Energy Efficiency & Heat Recovery

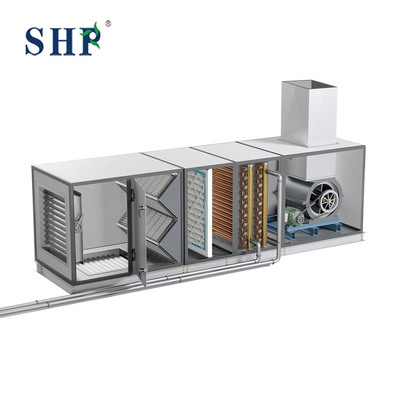

Typical System Configuration&Workflow

1. 1. Outside Air Pretreatment Section: Provides initial filtration and conditioning (temperature/humidity) for outside air, sometimes incorporating energy recovery from exhaust air.

   2. Mixing Section: Outside air and cleanroom return air are mixed in a controlled ratio.

   3. Temperature & Humidity Conditioning Section:

      • Cooling Coil: Uses chilled water for cooling and dehumidification.

      • Heating Coil: Uses hot water or electric elements for heating.

      • Humidification Section: Injects clean steam.

   4. Fan Section: A draw-through configuration (fan located after the coils) is more common, placing the coil section under negative pressure to prevent condensate leakage. Fans are typically VFD-controlled.

   5. Intermediate & Flow Straightening Sections: Ensure even airflow distribution across filters.

   6. Filtration Section: Houses medium-efficiency filters.

   7. Acoustic Attenuation Section: Reduces noise generated by high-volume fans.

   8. Discharge Section: Connects to ductwork leading to HEPA/ULPA filter fan units or ceiling terminals in the cleanroom.

   9. Control System: The central brain, often using DDC/PLC, which integrates with room sensors (temperature, humidity, pressure) to enable automated regulation.

Engineering Process

• Requirement Analysis
  Review airflow, cooling/heating load, filtration and cleanroom requirements.
• AHU Configuration
  Select casing, filters, coils, fans and control components according to project specifications.
• Manufacturing & Inspection
  Assemble and inspect the AHU before shipment.
• Installation & Commissioning
  Support installation, airflow adjustment and system commissioning.
• Testing & Documentation
  Provide applicable testing records, operation manuals and project documentation.

Related Products

SHP also provides cleanroom HVAC and environmental control equipment, including:

• Air-Cooled Chillers
• Fan Filter Units (FFUs)
• Cleanroom Air Showers
• Pass Boxes
• Cleanroom Doors and Windows
• HVAC Control Systems

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Certifications

Certifications

• ISO 9001:2015
• CE Certificates (if applicable)
• Cleanroom Related Testing Reports

Our Customers

Packing and Shipping

Why SHP

• 20+ Years of Proven Cleanroom Engineering Experience
• More Than 2,100 Cleanroom Projects Completed
• Delivering Projects in More Than 40 Countries
• A Dedicated Team of 12 Senior Cleanroom & HVAC Engineers
• Integrated Design, Manufacturing, Installation & Commissioning
• Designed for Pharmaceutical, Electronics, Medical and Laboratory Facilities

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes. We can provide DQ, IQ, OQ and PQ documentation, FAT/SAT reports, operation manuals, maintenance guides and complete cleanroom drawings according to project requirements.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
