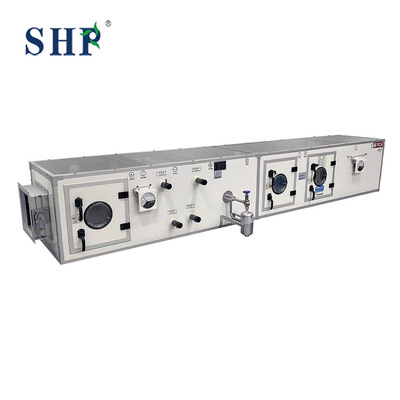

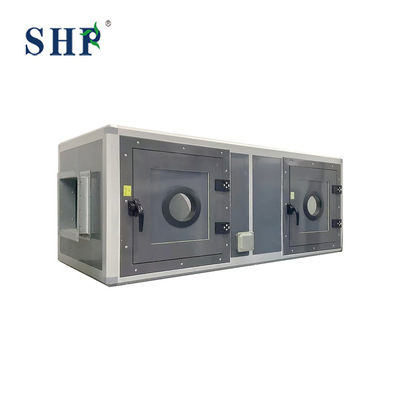

Ceiling Jet Type Central Clean Room Air Handling Units For HVAC System Ventilation
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 set |
| Price: | $6,000.00/sets 1-4 sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Central Clean Room Air Handling Units
,Ventilation Clean Room Air Handling Units
,Central Clean Room Air Conditioning System
Ceiling Jet Type Central Air Handling Unit for HVAC System and Clean Room Ventilation
Modular Air Handling Unit Product Overview
SHP Modular Air Handling Units (AHUs) are engineered for pharmaceutical, biotechnology, electronics, medical device, laboratory and hospital cleanroom applications. Designed in accordance with ISO 14644, GMP requirements and EN1886 standards, SHP AHUs provide precise control of temperature, humidity, airflow and air cleanliness to ensure stable environmental conditions for critical manufacturing and research processes.
Our AHUs integrate air filtration, cooling, heating, humidification, energy recovery and airflow management into a single modular system, delivering reliable and energy-efficient operation for cleanroom facilities worldwide.
Cleanroom HVAC Applications
| Application | Typical AHU Function |
| Pharmaceutical Cleanrooms | Temperature, humidity and filtered-air supply |
| Medical Device Facilities | Controlled air conditioning and ventilation |
| Electronics Manufacturing | Environmental and particulate-control support |
| Laboratories | Stable temperature and humidity control |
| Cosmetic Manufacturing | Conditioned and filtered air supply |
| Hospitals | HVAC air treatment for controlled areas |
Technical Specifications
| Item | Specification |
|---|---|
| Airflow Capacity | Customized |
| Filtration Grade | G4 + F8 + H13/H14 HEPA |
| Cooling Method | Chilled Water / DX Cooling |
| Heating Method | Hot Water / Electric Heating |
| Humidification | Steam / Ultrasonic |
| Fan Type | Centrifugal Fan / EC Fan |
| Control System | PLC / BMS Integration |
| Application | Pharmaceutical, Electronics, Hospital, Laboratory |
| Compliance | ISO 14644, GMP, EN1886 |

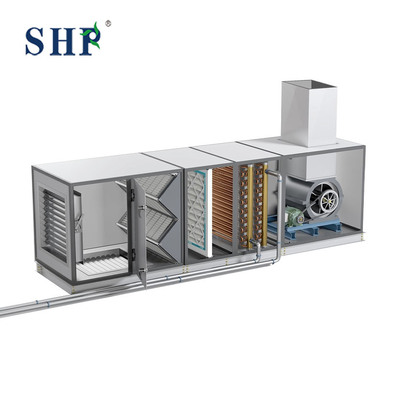

AHU Configuration & Components
Main AHU Components
- Fresh Air / Return Air Section
Controls the introduction and recirculation of air according to the HVAC design. - Pre-Filtration Section
Removes larger airborne particles before air enters the finer filtration stages. - Cooling Coil
Removes sensible and latent heat from the air. It can be connected to a chilled-water system or other specified cooling source. - Heating Section
Provides heating when required for temperature control or winter operation. - Humidification / Dehumidification
Configured when the cleanroom process requires tighter humidity control. - Fan Section
Provides the required airflow and static pressure for the downstream air distribution system. - HEPA Filtration
Can be incorporated where the system design requires high-efficiency final filtration. - Control Section
Monitors and regulates operating parameters such as temperature, humidity, fan status, and differential pressure.
Airflow & Filtration System
Fresh / Return Air
↓
Pre-Filter
↓
Fine Filter
↓
Cooling / Heating Coil
↓
Fan Section
↓
HEPA Filter*
↓
Cleanroom Air Distribution
HEPA filter location depends on the cleanroom HVAC design. In some systems, final HEPA filtration is installed at the terminal FFU or ceiling level rather than directly inside the AHU
Temperature & Humidity Control
The AHU can be configured to support temperature and humidity control through cooling coils, heating sections, humidification and dehumidification functions. Control parameters are selected according to the cleanroom process, product requirements, outdoor conditions and HVAC design.
- Supply air temperature
- Return air temperature
- Relative humidity
- Cooling coil
- Heating coil
- Humidifier
- Dehumidification
- Sensors
- PLC/HMI
HVAC System Integration
The Clean Room AHU can be integrated with:
- Chilled Water Chiller
- Chilled Water Pumps
- Cooling Towers, where applicable
- Ductwork
- HEPA Filters
- FFUs
- Cleanroom Terminal Units
- Differential Pressure Monitoring
- Temperature & Humidity Sensors
- BMS
The AHU primarily conditions and supplies air, while terminal filtration and airflow distribution are determined by the overall cleanroom HVAC design.
Engineering & Selection Process
Engineering & Selection Process
- 1. Requirement Analysis
Review cleanroom classification, room volume, occupancy, process heat load, outdoor air requirements, temperature and humidity targets. - 2. Airflow Calculation
Determine supply and return airflow based on room requirements, air-change strategy, pressure relationships and process requirements. - 3. AHU Selection
Select airflow capacity, static pressure, cooling/heating capacity, filtration stages, fan type and control configuration. - 4. System Integration
Coordinate AHU with chillers, pumps, ductwork, HEPA filters, FFUs, sensors and BMS. - 5. Manufacturing
Manufacture the AHU according to the approved configuration and technical specifications. - 6. Testing & Commissioning
Perform applicable factory inspection and support on-site commissioning according to the project scope.
Related Cleanroom Project Experience
Pharmaceutical Cleanroom Project – Mauritius
- Application: Pharmaceutical manufacturing
- Scope: HVAC system design / AHU integration / installation support
- Country: Mauritius

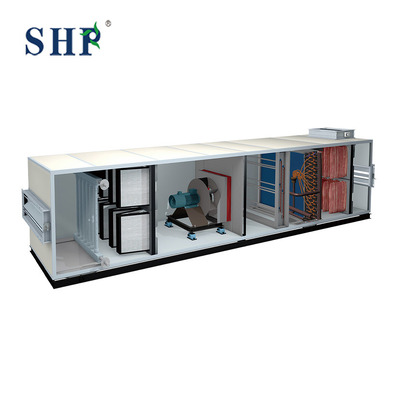

AHU Components & Functions
Air Mixing Section
Balances fresh air and return air to maintain indoor air quality while reducing energy consumption.
Filtration Section
Multi-stage filtration system removes airborne particles and contaminants.
- Pre-filter (G4)
- Medium Filter (F8)
- HEPA Filter (H13/H14)
Cooling & Heating Section
Provides precise temperature control through chilled water coils, DX coils or heating coils.
Humidification Section
Maintains stable humidity levels required for pharmaceutical and electronics manufacturing.
Fan Section
High-efficiency centrifugal or EC fans ensure uniform airflow distribution throughout the facility.
Energy Recovery Section
Optional heat recovery devices reduce operating costs and improve system efficiency.
Featured International Project
Pharmaceutical Cleanroom Project – Mauritius
Project Overview
SHP successfully completed a turnkey pharmaceutical cleanroom project in Mauritius, providing comprehensive engineering services from design through validation.
Project Scope
| Item | Details |
|---|---|
| Location | Mauritius |
| Industry | Pharmaceutical Manufacturing |
| Solution | Turnkey Cleanroom Project |
| Scope | Design, HVAC, Installation, Validation |
| Cleanroom Classification | ISO 7 |
| Completion Status | Successfully Delivered |
Challenges
The customer required a GMP-compliant cleanroom environment with strict temperature, humidity and pressure control to support pharmaceutical production activities.
SHP Solution
Customized AHU system
HEPA filtration system
Modular cleanroom panels
Pressure differential control
Environmental monitoring system
Project Results
Stable environmental control achieved
GMP requirements satisfied
Successful commissioning completed
On-time project delivery
Customer acceptance completed
Insert Mauritius Project Photos Here
![]()
Performance Testing & Validation
Cleanroom Validation Services
SHP provides comprehensive qualification and validation support for cleanroom projects.
Validation Documentation
Design Qualification (DQ)
Installation Qualification (IQ)
Operational Qualification (OQ)
Performance Qualification (PQ)
Testing Items
Airborne Particle Count Test
HEPA Filter Integrity Test
Airflow Velocity Test
Differential Pressure Test
Temperature Test
Humidity Test
Illumination Test
Noise Test
Third-Party Verification
The AHU and cleanroom systems are tested and verified through documented validation procedures to ensure compliance with project specifications and international cleanroom standards.
![]()
Engineering Process
- Requirement Analysis
Review airflow, cooling/heating load, filtration and cleanroom requirements. - AHU Configuration
Select casing, filters, coils, fans and control components according to project specifications. - Manufacturing & Inspection
Assemble and inspect the AHU before shipment. - Installation & Commissioning
Support installation, airflow adjustment and system commissioning. - Testing & Documentation
Provide applicable testing records, operation manuals and project documentation.
Company Profile
As a leading supplier of cleanroom systems and cleanroom products, SHP specializes in providing turnkey cleanroom solutions for pharmaceutical, biotechnology, medical device, laboratory and electronics industries.
With decades of engineering experience, SHP offers complete services including design, manufacturing, installation, commissioning and validation.
| Item | Data |
|---|---|
| Years of Experience | 20+ |
| Completed Projects | 2100+ |
| Countries Served | 40+ |
| Senior Engineers | 12 |
| Quality Certification | ISO 9001:2015 |
Certifications
Certifications
- ISO 9001:2015
- CE Certificates (if applicable)
- Cleanroom Related Testing Reports
![]()
Why Choose SHP
Proven Global Experience
Over 2,100 cleanroom projects completed worldwide.
Comprehensive Engineering Support
From concept design to validation and after-sales service.
International Standards Compliance
Designed according to ISO, GMP and international HVAC standards.
Reliable After-Sales Service
Two-year warranty and global technical support.
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes. We can provide DQ, IQ, OQ and PQ documentation, FAT/SAT reports, operation manuals, maintenance guides and complete cleanroom drawings according to project requirements.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
