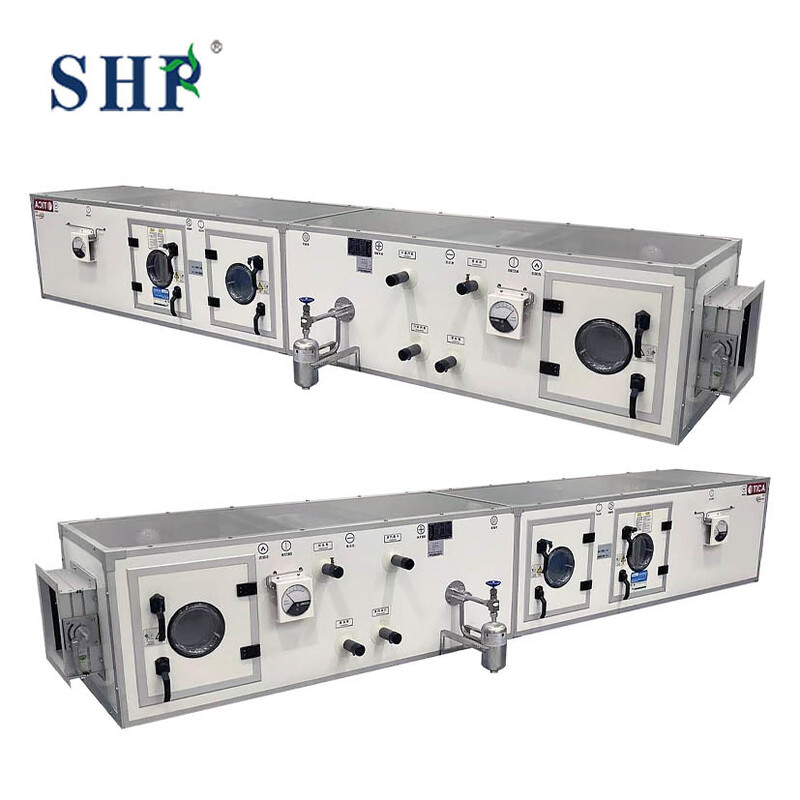

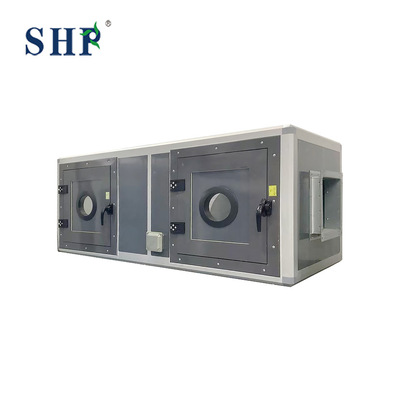

Central Unit Air Handling Unit with Heat Recovery and Remote Control LCD Touch Screen

Product Overview

Air Handling Unit

Features at a Glance

• Cleanroom HVAC Applications

  ---

  Application	Typical AHU Function
  Pharmaceutical Cleanrooms	Temperature, humidity and filtered-air supply
  Medical Device Facilities	Controlled air conditioning and ventilation
  Electronics Manufacturing	Environmental and particulate-control support
  Laboratories	Stable temperature and humidity control
  Cosmetic Manufacturing	Conditioned and filtered air supply
  Hospitals	HVAC air treatment for controlled areas

  Technical Specifications

  ---

  Air Volume	2000–20000 m³/h
  Cooling Capacity	12.6 kW
  External Static Pressure	200–800 Pa
  Air Filtration	G4 Pre-filter + F8 Medium Filter + H13 HEPA
  Casing Material	Double-skin Galvanized Steel Sheet (PU Insulated)
  Coil Material	Copper Tube with Aluminum Fins
  Fan Type	Centrifugal Plug Fan (EC/AC)
  Fresh Air Ratio	20%–30%
  Power Supply	380V / 50Hz / 3Ph
  Refrigerant	R134a
  Control System	PLC + HMI with BMS Interface

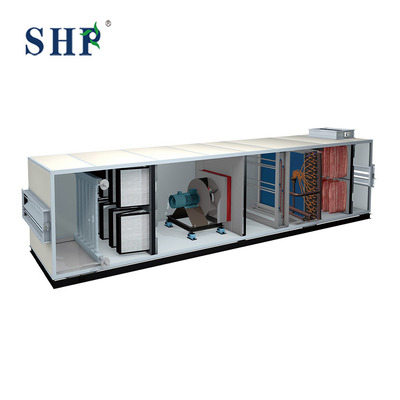

  AHU Configuration & Components

  ---

  Main AHU Components

  • Fresh Air / Return Air Section
    Controls the introduction and recirculation of air according to the HVAC design.
  • Pre-Filtration Section
    Removes larger airborne particles before air enters the finer filtration stages.
  • Cooling Coil
    Removes sensible and latent heat from the air. It can be connected to a chilled-water system or other specified cooling source.
  • Heating Section
    Provides heating when required for temperature control or winter operation.
  • Humidification / Dehumidification
    Configured when the cleanroom process requires tighter humidity control.
  • Fan Section
    Provides the required airflow and static pressure for the downstream air distribution system.
  • HEPA Filtration
    Can be incorporated where the system design requires high-efficiency final filtration.
  • Control Section
    Monitors and regulates operating parameters such as temperature, humidity, fan status, and differential pressure.

  Airflow & Filtration System

  ---

  Fresh / Return Air
  ↓
  Pre-Filter
  ↓
  Fine Filter
  ↓
  Cooling / Heating Coil
  ↓
  Fan Section
  ↓
  HEPA Filter*
  ↓
  Cleanroom Air Distribution

  HEPA filter location depends on the cleanroom HVAC design. In some systems, final HEPA filtration is installed at the terminal FFU or ceiling level rather than directly inside the AHU

  Temperature & Humidity Control

  ---

  The AHU can be configured to support temperature and humidity control through cooling coils, heating sections, humidification and dehumidification functions. Control parameters are selected according to the cleanroom process, product requirements, outdoor conditions and HVAC design.

  • Supply air temperature
  • Return air temperature
  • Relative humidity
  • Cooling coil
  • Heating coil
  • Humidifier
  • Dehumidification
  • Sensors
  • PLC/HMI

  HVAC System Integration

  ---

  The Clean Room AHU can be integrated with:

  • Chilled Water Chiller
  • Chilled Water Pumps
  • Cooling Towers, where applicable
  • Ductwork
  • HEPA Filters
  • FFUs
  • Cleanroom Terminal Units
  • Differential Pressure Monitoring
  • Temperature & Humidity Sensors
  • BMS

  The AHU primarily conditions and supplies air, while terminal filtration and airflow distribution are determined by the overall cleanroom HVAC design.

  Engineering & Selection Process

  ---

  Engineering & Selection Process

  • 1. Requirement Analysis
    Review cleanroom classification, room volume, occupancy, process heat load, outdoor air requirements, temperature and humidity targets.
  • 2. Airflow Calculation
    Determine supply and return airflow based on room requirements, air-change strategy, pressure relationships and process requirements.
  • 3. AHU Selection
    Select airflow capacity, static pressure, cooling/heating capacity, filtration stages, fan type and control configuration.
  • 4. System Integration
    Coordinate AHU with chillers, pumps, ductwork, HEPA filters, FFUs, sensors and BMS.
  • 5. Manufacturing
    Manufacture the AHU according to the approved configuration and technical specifications.
  • 6. Testing & Commissioning
    Perform applicable factory inspection and support on-site commissioning according to the project scope.

  Related Cleanroom Project Experience

  ---

  Pharmaceutical Cleanroom Project – Mauritius

  • Application: Pharmaceutical manufacturing
  • Scope: HVAC system design / AHU integration / installation support
  • Country: Mauritius

  Air Mixing & Proportioning

  • Purpose: To balance energy efficiency with indoor air quality (IAQ).

  • How it Works: Dampers automatically adjust the ratio of outside fresh air and indoor return air. This allows for "free cooling/heating" using return air to save energy while ensuring sufficient fresh air intake for occupant health and ventilation requirements.

• Air Filtration & Purification

  • Purpose: To protect downstream equipment and improve IAQ by removing contaminants.

  • How it Works: Air passes through a series of filters.

    • Pre-filter: Traps large particles like dust and lint, protecting coils and fans.

    • Medium-efficiency filter: Removes finer particles (e.g., pollen, mold spores), common in commercial buildings.

    • High-efficiency/HEPA/Chemical filters (Optional): Used in critical environments like hospitals and labs to remove PM2.5, bacteria, viruses, or gaseous pollutants.

• Air Temperature & Humidity Control

This is the core conditioning process, achieved via heat exchangers and humidifiers.

• • Cooling & Dehumidification: Air passes over a cooling coil carrying chilled water (~7°C) from a chiller or direct-expansion refrigerant. The air cools below its dew point, causing moisture to condense and drain away.

  • Heating: Air passes over a heating coil carrying hot water from a boiler or using electric resistance elements.

  • Humidification: In dry climates or during winter, a humidifier (steam, ultrasonic, or evaporative) adds precise moisture to the air.

• Air Movement & Distribution

  • Purpose: To provide the motive force for airflow and deliver it to the occupied spaces.

  • How it Works:

    • Fan: The "heart" that provides the pressure to move air through the ductwork. Modern AHUs use Variable Frequency Drive (VFD) fans to modulate airflow based on demand, saving significant energy.

    • Silencer/Attenuator: Reduces noise generated by the fan and airflow.

    • Conditioned air is then distributed quietly and evenly to rooms via ductwork and diffusers.

• Energy Recovery (A Key Feature in High-Efficiency AHUs)

  • Purpose: To dramatically reduce heating and cooling energy consumption.

  • How it Works: A heat recovery device (e.g., heat wheel, plate heat exchanger) is placed where the exhaust air and fresh intake air streams cross. It transfers thermal energy from the exhaust air to pre-condition the incoming fresh air, potentially reducing loads by over 60%.

Products Description

• • Fan Section: The "heart" — provides the motive force to move air.

  • Filter Section: The "cleaning station" — contains pre-filters and finer filters to ensure air cleanliness.

  • Coil Section: The "conditioning station" — uses hot water or steam coils for heating, and chilled water or refrigerant coils for cooling/dehumidifying.

  • Humidifier Section: Adds moisture to the air when required.

  • Mixing Chamber with Dampers: Controls the proportions of fresh and recirculated air.

Engineering Process

• Requirement Analysis
  Review airflow, cooling/heating load, filtration and cleanroom requirements.
• AHU Configuration
  Select casing, filters, coils, fans and control components according to project specifications.
• Manufacturing & Inspection
  Assemble and inspect the AHU before shipment.
• Installation & Commissioning
  Support installation, airflow adjustment and system commissioning.
• Testing & Documentation
  Provide applicable testing records, operation manuals and project documentation.

Related Products

SHP also provides cleanroom HVAC and environmental control equipment, including:

• Air-Cooled Chillers
• Fan Filter Units (FFUs)
• Cleanroom Air Showers
• Pass Boxes
• Cleanroom Doors and Windows
• HVAC Control Systems

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Certifications

Certifications

• ISO 9001:2015
• CE Certificates (if applicable)
• Cleanroom Related Testing Reports

Our Customers

Packing and Shipping

Why SHP

• Two Decades of Experience in Cleanroom Engineering
• 2,100+ Cleanroom Projects Delivered to Clients
• Projects Executed in 40+ Countries
• Staffed by 12 Senior Cleanroom & HVAC Engineers
• Design, Manufacturing, Installation and Commissioning Made Easy
• Support Tailored to Pharmaceutical, Electronics, Medical and Laboratory Facilities

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes. We can provide DQ, IQ, OQ and PQ documentation, FAT/SAT reports, operation manuals, maintenance guides and complete cleanroom drawings according to project requirements.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
