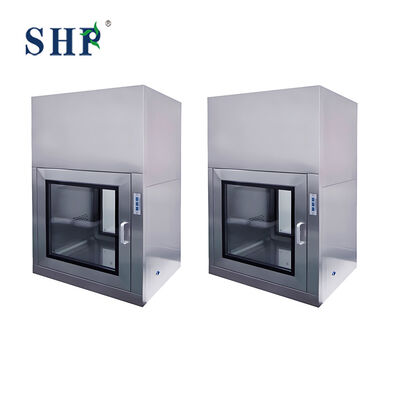

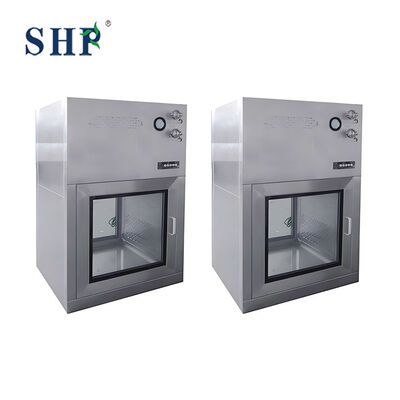

Electronic Dynamic Pass Box 600mm Pass Through Cleanroom Interlock Pass Box
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 Set |
| Price: | $380.00/sets >=1 sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Electronic Dynamic Pass Box
,Dynamic Pass Box 600mm
,Pass Through cleanroom interlock pass box
Product Overview ——Stainless Steel Electronic Interlock Pass Through Box for Cleanroom Latest Technology
Pass Box
- Static Pass Box
Static Pass Box is specifically designed that aids in the material transfer without much personnel movement.Furthermore,the Static Pass Box also acts as a hindrance for entrance of contaminants in clean room and other classified areas.
- Dynamic Pass Box
A Dynamic Pass Box is an interlocked, HEPA-filtered air shower chamber installed in a wall between two areas of different cleanliness classes. Its primary function is to decontaminate materials by blowing HEPA-filtered air over them before they enter the higher-cleanliness zone.
Main Specification for Pass Box
| Specifications | Static Pass Box | Dynamic Pass Box | |
| Working Dimensions | 500×500×500 | 600×600×600 | Customized |
| Model No | SHPDPB001 | SHPDPB002 | SHPDPBXXX |
| Material | SS304,SUS304,SS Sheet,Thick.=1.0,1.2mm | ||
| Glass | Double Tempered Glass,Thick.=5mm | ||
| Hinge | Mechanic/Electronic Interlocker System | ||
| Power Supply | 220V,50HZ | ||
| UV Light | YES | YES | |
| Air Velocity | N/A | 0.3m/s-0.6m/s | |
| HEPA | N/A | EU 14 grade with an efficiency of 99.990% for 0.3 mic.(GEL TYPE) | |
| Prefilter | N/A | EU 4 grade with an efficiency of 90% for 10 mic. | |
| Accessories | N/A | PAO test port of HEPA,High Efficiency Differential Pressure Gauge | |
Key Function
-
Contamination Barrier: Prevents cross-contamination between areas (e.g., from corridor to cleanroom).
-
Pressure Maintenance: Preserves critical pressure cascades (positive or negative) during material transfer.
-
Process Control: Serves as a defined checkpoint for material decontamination or staging.
-
Workflow Efficiency: Reduces personnel traffic and door openings into sensitive areas.
Products Description
- Observation window: The observation window is the key feature that transforms a pass-through from a "black-box" device into an interactive, monitorable, and trustworthy intelligent control node.
- Interlock system: The cleanroom interlock system is the most direct embodiment of the Quality by Design (QbD) concept at the facility level. Through "hard-wired" engineering controls, it establishes an underlying line of defense for product quality and patient safety that activates automatically without requiring human intervention.

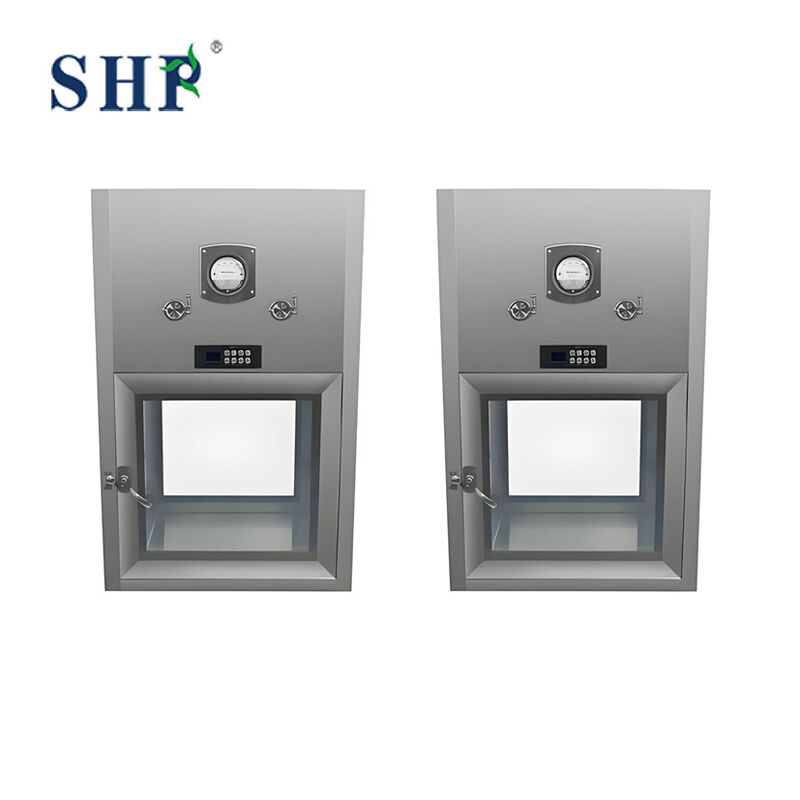

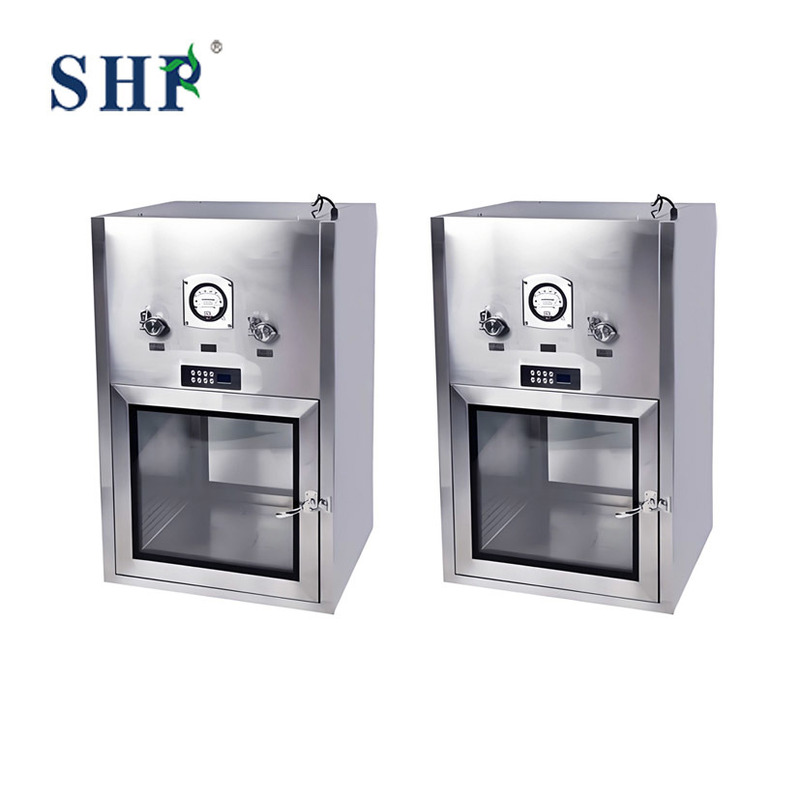

- Differential pressure gauge&Detection port: The value of the differential pressure gauge lies in providing continuous status awareness and immediate alerts, serving as the eyes of daily operations.
- ARC Corner: ARC Corner represents a fundamental shift in cleanroom design—from passively tolerating contamination to proactively eliminating contamination risks.
- Corrosion-resistant stainless steel: Corrosion-resistant stainless steel is the material of choice for high-standard cleanroom construction, with its advantages profoundly impacting the cleanroom's performance, lifespan, and compliance.
Related Products
Company Profile
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Certification
Our Customers
Customer Photos
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
