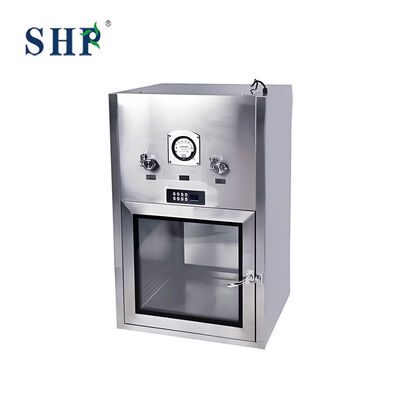

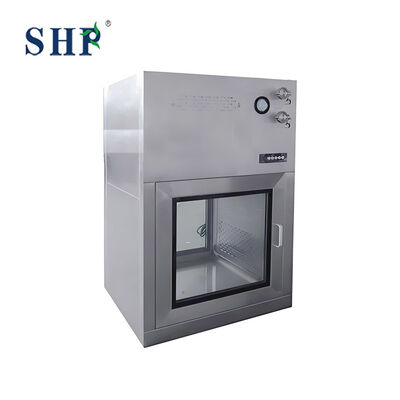

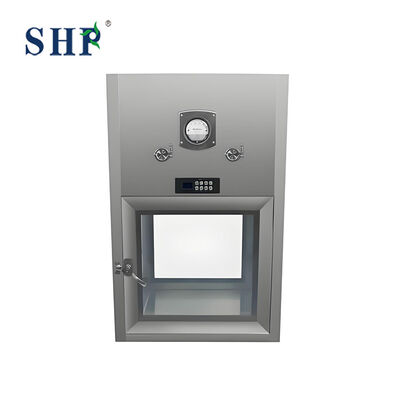

• Static Pass Box

Static Pass Box is specifically designed that aids in the material transfer without much personnel movement.Furthermore,the Static Pass Box also acts as a hindrance for entrance of contaminants in clean room and other classified areas.

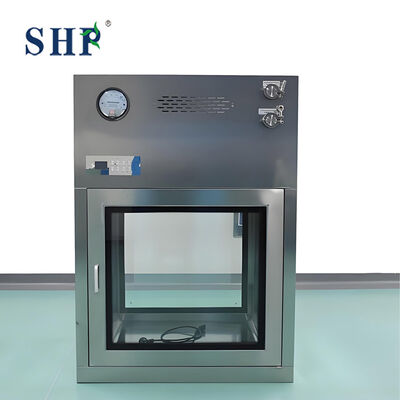

• Dynamic Pass Box

A Dynamic Pass Box is an interlocked, HEPA-filtered air shower chamber installed in a wall between two areas of different cleanliness classes. Its primary function is to decontaminate materials by blowing HEPA-filtered air over them before they enter the higher-cleanliness zone.

Main Specification for Pass Box

Features at a Glance

• High-Efficiency Contamination Prevention & Controllable Cleanliness

1. Built-in FFU and HEPA/ULPA high-efficiency filter, continuously generating 0.3~0.5m/s unidirectional laminar flow to form a positive pressure barrier inside the cavity, eliminating the infiltration of external non-clean air.

2. Airflow scours the material surface, with a purification efficiency of ≥99.97% for 0.3μm particles, effectively removing dust and microorganisms and preventing contaminants from entering high-cleanliness areas along with materials.

3. The internal cleanliness of the cavity stably reaches ISO Class 5, without being affected by external pressure difference fluctuations.

• Multiple Compliance & Strong Traceability

1. Fully compliant with industry standards such as GMP and ISO 14644, meeting the material transfer requirements of harsh fields such as pharmaceuticals and semiconductors.

2. Equipped with double-door electronic interlock and operation status monitoring function, automatically recording data such as transfer time and filter service life, facilitating audit trails.

3. Optional UV sterilization linkage module, achieving dual protection of "laminar flow purification + UV disinfection", suitable for scenarios such as sterile preparation and biological experiments.

• Ready-to-Use & Easy Operation

1. The fan runs continuously, eliminating preheating waiting time, shortening the material transfer cycle and improving workshop circulation efficiency.

2. Cavity with dead-corner-free design and stainless steel inner wall, resistant to acids and alkalis and easy to clean, reducing maintenance man-hours.

3. Modular structure, no need to damage the cleanroom wall during installation, suitable for both new construction and renovation projects.

• Energy-Saving, Stable & Long Service Life

1. Variable frequency fan can automatically adjust speed according to cavity pressure difference, reducing energy consumption by more than 30% compared with the external clean air supply mode.

2. Real-time monitoring of filter resistance, triggering audible and visual alarm when exceeding the standard, avoiding the risk of purification failure.

3. The door body is made of tempered glass and sealing rubber strips, featuring wear resistance and corrosion resistance, with the service life of the whole machine up to 8~10 years.

Products Description

• Observation window: The observation window is the key feature that transforms a pass-through from a "black-box" device into an interactive, monitorable, and trustworthy intelligent control node.
• Interlock system: The cleanroom interlock system is the most direct embodiment of the Quality by Design (QbD) concept at the facility level. Through "hard-wired" engineering controls, it establishes an underlying line of defense for product quality and patient safety that activates automatically without requiring human intervention.
• Differential pressure gauge&Detection port: The value of the differential pressure gauge lies in providing continuous status awareness and immediate alerts, serving as the eyes of daily operations.
• ARC Corner: ARC Corner represents a fundamental shift in cleanroom design—from passively tolerating contamination to proactively eliminating contamination risks.
• Corrosion-resistant stainless steel: Corrosion-resistant stainless steel is the material of choice for high-standard cleanroom construction, with its advantages profoundly impacting the cleanroom's performance, lifespan, and compliance.

Related Products

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Our Certification

Our Customers

Customer Photos

Packing and Shipping

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
