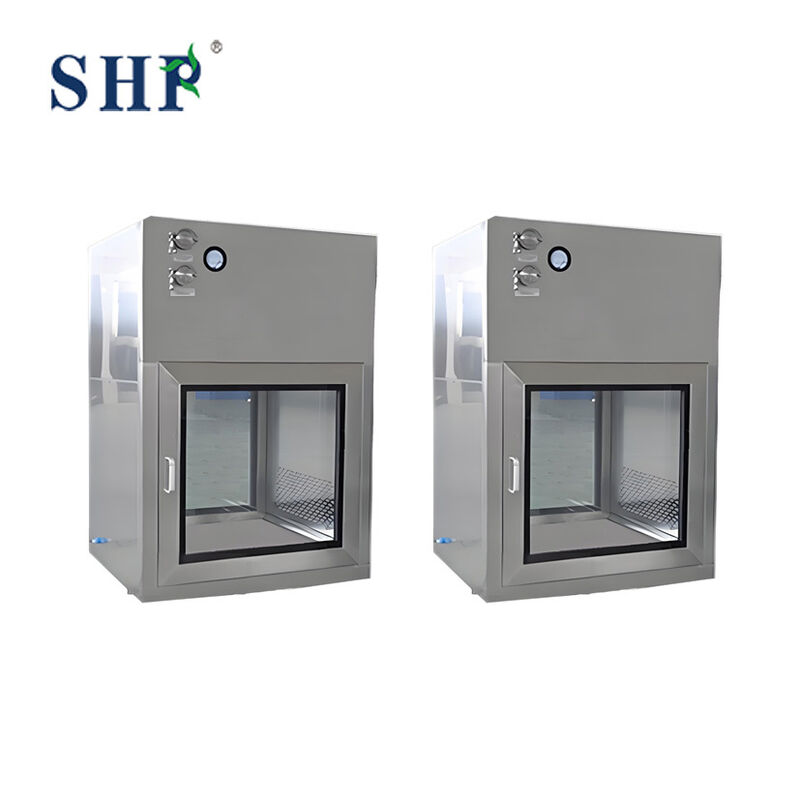

Coated Steel Dynamic Pass Box SS316 Clean Pass Box With UV Lamp
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 Set |
| Price: | $380.00/sets >=1 sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Coated Steel Dynamic Pass Box
,remove dust Dynamic Pass Box
,UV Lamp clean pass box
Product Overview ——Cleanroom Coated Steel/SUS304/SS316 Dynamic Pass Box GMP/CE/ISO Approved with UV Lamp
Pass Box
- Static Pass Box
Static Pass Box is specifically designed that aids in the material transfer without much personnel movement.Furthermore,the Static Pass Box also acts as a hindrance for entrance of contaminants in clean room and other classified areas.
- Dynamic Pass Box
A Dynamic Pass Box is an interlocked, HEPA-filtered air shower chamber installed in a wall between two areas of different cleanliness classes. Its primary function is to decontaminate materials by blowing HEPA-filtered air over them before they enter the higher-cleanliness zone.
Main Specification for Pass Box
| Specifications | Static Pass Box | Dynamic Pass Box | |
| Working Dimensions | 500×500×500 | 600×600×600 | Customized |
| Model No | SHPDPB001 | SHPDPB002 | SHPDPBXXX |
| Material | SS304,SUS304,SS Sheet,Thick.=1.0,1.2mm | ||
| Glass | Double Tempered Glass,Thick.=5mm | ||
| Hinge | Mechanic/Electronic Interlocker System | ||
| Power Supply | 220V,50HZ | ||
| UV Light | YES | YES | |
| Air Velocity | N/A | 0.3m/s-0.6m/s | |
| HEPA | N/A | EU 14 grade with an efficiency of 99.990% for 0.3 mic.(GEL TYPE) | |
| Prefilter | N/A | EU 4 grade with an efficiency of 90% for 10 mic. | |
| Accessories | N/A | PAO test port of HEPA,High Efficiency Differential Pressure Gauge | |
Features at a Glance
- High-Efficiency Contamination Barrier
- Stronger Compliance
- Convenient and Efficient Operation
- Energy-Saving, Stable and Durable
Products Description
- Observation window: The observation window is the key feature that transforms a pass-through from a "black-box" device into an interactive, monitorable, and trustworthy intelligent control node.
- Interlock system: The cleanroom interlock system is the most direct embodiment of the Quality by Design (QbD) concept at the facility level. Through "hard-wired" engineering controls, it establishes an underlying line of defense for product quality and patient safety that activates automatically without requiring human intervention.
- Differential pressure gauge&Detection port: The value of the differential pressure gauge lies in providing continuous status awareness and immediate alerts, serving as the eyes of daily operations.
- ARC Corner: ARC Corner represents a fundamental shift in cleanroom design—from passively tolerating contamination to proactively eliminating contamination risks.
- Corrosion-resistant stainless steel: Corrosion-resistant stainless steel is the material of choice for high-standard cleanroom construction, with its advantages profoundly impacting the cleanroom's performance, lifespan, and compliance.
