100 Lab Clean Room Air Shower Room from Cleanroom Equipment for Function Clean Work Room

Product Overview

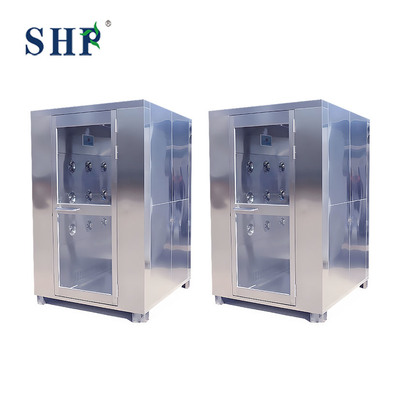

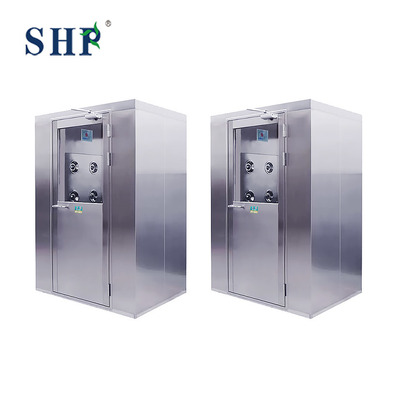

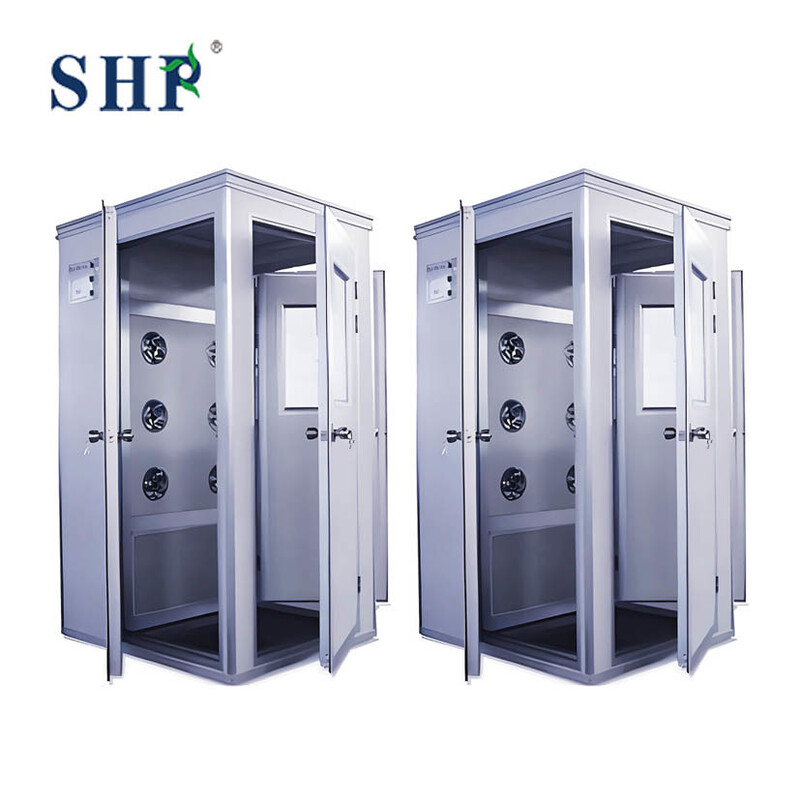

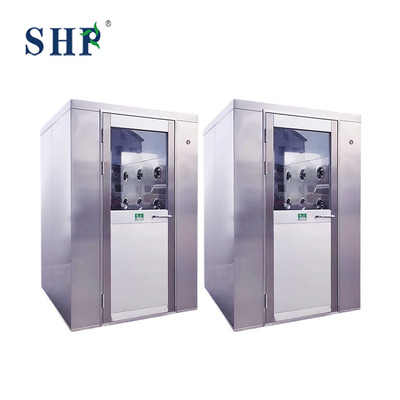

Air Shower

Functioning as a critical decontamination facility, the cleanroom air shower is designed to dislodge and remove loose contaminants from garments and equipment with jets of ultra-clean air, acting as a final cleansing step before entering the controlled environment.

How the Air Shower Works

Between the gowning area and the controlled cleanroom area, an air shower is normally installed as part of the personnel purification route.

• 1. Personnel Entry
  Personnel are admitted into the air shower from the gowning or lower-cleanliness side.
• 2. Door Interlocking
  Helping to prevent both doors from opening simultaneously during normal operation, an interlocking system controls the entrance and exit doors.
• 3. Air Shower Cycle
  Directional nozzles deliver filtered air for removing loose particles from exposed surfaces of cleanroom garments.
• 4. Air Recirculation and Filtration
  The air circulation system recovers air before passing it through the filtration system according to the equipment configuration.
• 5. Cleanroom Entry
  Once the programmed shower cycle completes, the exit door can be released and personnel proceed into the controlled area.

To suit the cleanroom design and project requirements, the actual shower cycle, airflow configuration, filtration arrangement and control logic should be selected.

Core Function

The primary function of a cleanroom air shower is to decontaminate personnel and materials by removing loose particulate contaminants(such as dust,lint,fibers,and skin cells) from their surfaces before granting access to the controlled cleanroom environment.

Main Components & Construction

Technical Specifications

Main Specification for Air Shower

Air Shower Types & Configurations

Cleanroom Applications

It is typical for air shower rooms to be integrated into the personnel purification route between gowning areas and controlled cleanroom spaces.

Examples of applications include:

• Pharmaceutical production operations
• Medical and clinical facilities
• Laboratory research areas
• Semiconductor device and electronics manufacturing
• Food and beverage operations
• Cosmetics and beauty production
• Precision engineering production

Rather than an isolated equipment component, the air shower configuration should be selected together with the cleanroom layout, personnel flow, cleanliness requirements and operating procedures.

Engineering & Customization Process

• 1. Requirement Analysis
  Review the cleanroom classification, personnel flow, installation space available and operating requirements.
• 2. Configuration Design
  According to the project, select the air shower type, dimensions, door arrangement, filtration and control configuration.
• 3. Manufacturing
  Fabricate and assemble the chamber, filtration system, fan section, doors and control parts according to the approved configuration.
• 4. Factory Inspection
  Inspect the assembled unit, electrical system, door action, interlock function and other applicable items before shipment.
• 5. Installation & Commissioning
  Support site installation, connection and functional adjustment according to project requirements.
• 6. Documentation
  Provide applicable product drawings, operation instructions, maintenance information and test documentation.

Testing & Validation

• Visual review of the assembly
• Dimension survey
• Door run test
• Testing of interlock function
• Fan operation trial
• Lighting trial
• Control unit test
• Airflow evaluation
• HEPA integrity testing where relevant

Manufacturing Capability

Founded in 2003 in Suzhou, China, SHP is a company specializing in cleanroom engineering and manufacturing.

Backed by over 20 years of cleanroom engineering experience and a workshop of more than 10,000 m², SHP manufactures and integrates cleanroom equipment such as Air Shower Rooms, FFUs, Pass Boxes, HEPA Boxes, Clean Benches, Cleanroom Doors and HVAC systems.

Air Shower production covers enclosure fabrication, fan and filtration assembly, door and interlock installation, electrical control integration, and pre-shipment inspection based on the approved project configuration.

Customer Photos

Our Certification

Products Description

• Slide rail style door closer:A slide rail door closer for air showers is a high-durability, high-precision core functional component designed to safeguard cleanroom environments.
• LCD control screen:The LCD control panel is not only the "intelligent brain" of the air shower but also a critical component that enhances equipment reliability, operational efficiency, and management standards.
• Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
• High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.

Related Products

Our Customers

Why Choose SHP

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
