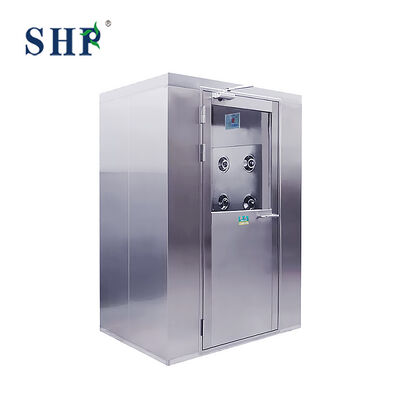

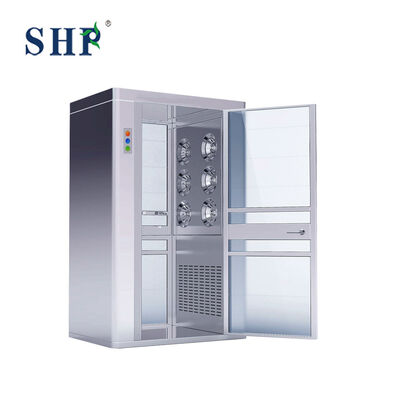

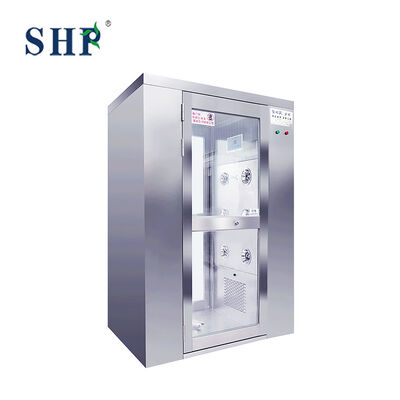

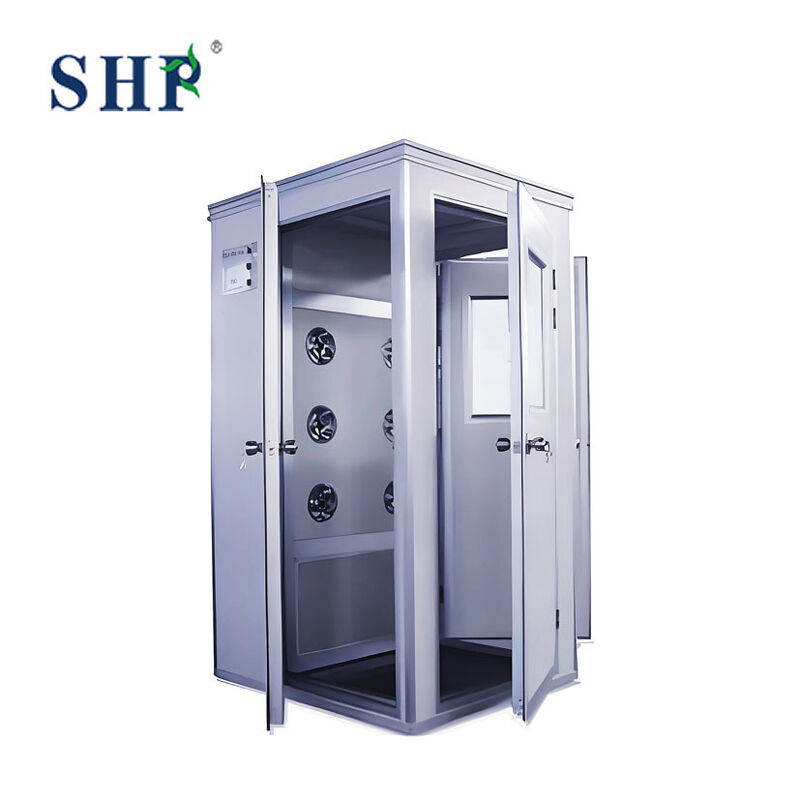

Clean Room Equipment Air Shower Room with Adjustable Shower Time and High Velocity

Product Overview

Air Shower

A cleanroom air shower is a dedicated entryway chamber that serves as a decontamination barrier, using high-velocity, filtered air to remove particulate matter from personnel and objects prior to cleanroom entry.

How the Air Shower Works

Forming part of the personnel purification route, an air shower is normally installed between the gowning area and the controlled cleanroom area.

• 1. Personnel Entry
  Entry to the air shower is from the gowning or lower-cleanliness side.
• 2. Door Interlocking
  An interlocking system is applied to the entrance and exit doors to help prevent both doors from being opened simultaneously during normal operation.
• 3. Air Shower Cycle
  To clear loose particles from exposed surfaces of cleanroom garments, filtered air flows through directional nozzles.
• 4. Air Recirculation and Filtration
  The air circulation system recovers air and forces it through the filtration system according to the equipment configuration.
• 5. Cleanroom Entry
  After the programmed shower cycle is done, the exit door can be released and personnel continue into the controlled area.

The actual shower cycle, airflow configuration, filtration arrangement and control logic should be picked according to the cleanroom design and project requirements.

Key Purposes

• Personnel Decontamination: To minimize the introduction of human-borne contaminants (from skin, hair, and street clothing).

• Material Transfer: To clean carts, tools, and supplies.

• Containment: In some designs, it can also act as an airlock to prevent unfiltered air from the less clean area from flowing into the higher-classification cleanroom.

Main Components & Construction

Technical Specifications

Main Specification for Air Shower

Air Shower Types & Configurations

Cleanroom Applications

Air shower rooms are typically incorporated into the personnel purification route between gowning areas and controlled cleanroom spaces.

Standard applications include:

• Pharmaceutical manufacturing units
• Medical facilities and hospitals
• Laboratory suites
• Semiconductor and electronics processing
• Beverage production and food processing
• Cosmetics manufacturing plants
• Precision engineering environments

Together with the cleanroom layout, personnel flow, cleanliness requirements and operating procedures, the air shower configuration should be chosen rather than viewed as an isolated equipment component.

Engineering & Customization Process

• 1. Requirement Analysis
  Check the cleanroom classification, personnel flow, available installation space and operating requirements.
• 2. Configuration Design
  Select the air shower model, dimensions, door arrangement, filtration and control configuration according to the project.
• 3. Manufacturing
  Fabricate and assemble the chamber, filtration system, fan section, doors and control elements according to the approved configuration.
• 4. Factory Inspection
  Inspect the assembled unit, electrical system, door operation, interlock function and other applicable aspects before shipment.
• 5. Installation & Commissioning
  Support site installation, connection and functional commissioning as required by the project.
• 6. Documentation
  Provide applicable product drawings, operation instructions, maintenance information and records of testing.

Testing & Validation

• Visual examination of the unit
• Checking dimensions
• Door test
• Interlock check
• Blower operation test
• Light function test
• Checking of the control panel
• Airflow survey
• HEPA filter integrity testing as required

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Customer Photos

Products Description

• Slide rail style door closer:A slide rail door closer for air showers is a high-durability, high-precision core functional component designed to safeguard cleanroom environments.
• LCD control screen:The LCD control panel is not only the "intelligent brain" of the air shower but also a critical component that enhances equipment reliability, operational efficiency, and management standards.
• Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
• High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.
