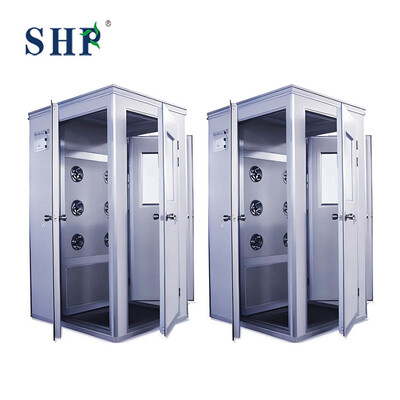

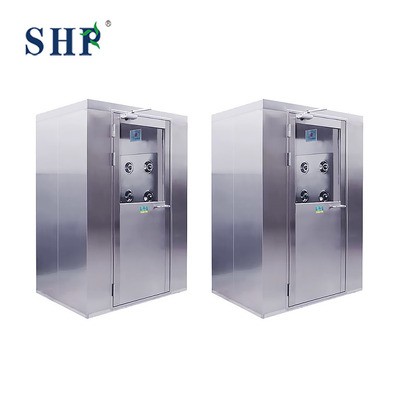

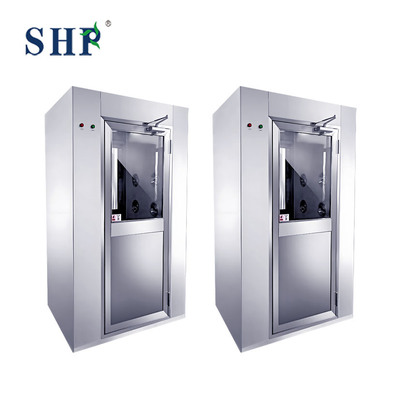

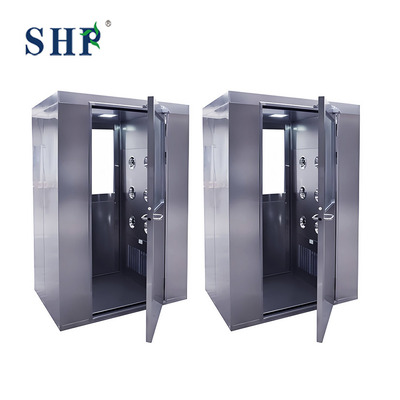

Advanced PLC Touch Screen Display Stainless Steel 304 Double Automatic Door Air Shower

Product Overview

Air Shower

An air shower is a mandatory personnel/ material decontamination unit installed at the entrance of a cleanroom. It uses high-velocity, filtered clean air to blow off particulate contaminants from the surfaces of individuals or objects, thereby preventing the introduction of pollutants into the critical clean area.

How the Air Shower Works

An air shower is located between the gowning area and the controlled cleanroom area as part of the personnel purification route.

• 1. Personnel Entry
  Personnel move into the air shower from the gowning or lower-cleanliness side.
• 2. Door Interlocking
  An interlocking system keeps the entrance and exit doors coordinated, helping to prevent both from being opened simultaneously during normal operation.
• 3. Air Shower Cycle
  Loose particles are removed from exposed surfaces of cleanroom garments by filtered air supplied through directional nozzles.
• 4. Air Recirculation and Filtration
  The air circulation system recovers air and directs it through the filtration system per the equipment configuration.
• 5. Cleanroom Entry
  The exit door can be released once the programmed shower cycle is completed, letting personnel proceed into the controlled area.

Based on the cleanroom design and project requirements, the actual shower cycle, airflow configuration, filtration arrangement and control logic should be selected.

Core Purpose&Principle

• • Purpose: To prevent the ingress of external pollutants, thereby protecting product quality (in semiconductors, , biotech) and process integrity.

  • Principle: It operates on the concept of an "Air Knife" or "Air Bath." High-velocity jets of clean, filtered air are directed from strategically placed nozzles onto the person or object from multiple angles. This turbulent shear force effectively dislodges and flushes away dust, fibers, skin cells, and other surface particles.

Main Components & Construction

Technical Specifications

Main Specification for Air Shower

Air Shower Types & Configurations

Cleanroom Applications

Air shower rooms are regularly integrated into the personnel purification route between gowning areas and controlled cleanroom spaces.

Applications are typically:

• Pharmaceutical drug manufacturing
• Medical and hospital facilities
• Laboratory facilities and rooms
• Electronics and chip manufacturing
• Food and drink production
• Cosmetic manufacturing facilities
• Precision manufacturing facilities

The air shower configuration should be selected together with such factors as the cleanroom layout, personnel flow, cleanliness requirements and operating procedures rather than as an isolated equipment component.

Engineering & Customization Process

• 1. Requirement Analysis
  Consider cleanroom classification, personnel flow, available installation space and operating requirements.
• 2. Configuration Design
  Decide on the air shower type, dimensions, door arrangement, filtration and control configuration according to the project.
• 3. Manufacturing
  Fabricate and assemble the chamber, filtration system, fan section, doors and controls according to the approved configuration.
• 4. Factory Inspection
  Inspect the assembled unit, electrical system, door operation, interlocking function and other applicable items before shipment.
• 5. Installation & Commissioning
  Support site installation, connection and functional testing/commissioning according to project requirements.
• 6. Documentation
  Provide applicable product drawings, operation instructions, maintenance guidance and testing records.

Testing & Validation

• Visual appraisal
• Dimensional measurement
• Operational test of the door
• Interlocking function test
• Operational test of the fan
• Lighting performance test
• Control panel functioning check
• Airflow assessment
• HEPA integrity testing when applicable

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Customer Photos

Products Description

• Slide rail style door closer:The slide rail style door closer is the preferred and industry-standard actuation mechanism for high-performance air showers. Its design offers distinct advantages over traditional hinge doors with separate closers, specifically addressing the critical needs of contamination control and operational integrity.
• LCD control screen:The LCD (Liquid Crystal Display) control screen is the modern, intelligent command center of an advanced air shower system. Replacing traditional button-and-light panels, it provides a user-friendly graphical interface that enhances operational control, procedural compliance, and system diagnostics.
• Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
• High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.

Related Products

Our Customers

Why Choose SHP

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
