Aluminum Alloy Frame Cleanroom Window Customized 50mm Metal Double Glass
| Brand Name: | SHP |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Aluminum Alloy Frame cleanroom window
,cleanroom window 50mm Metal
,Double Glass Window Double Glass

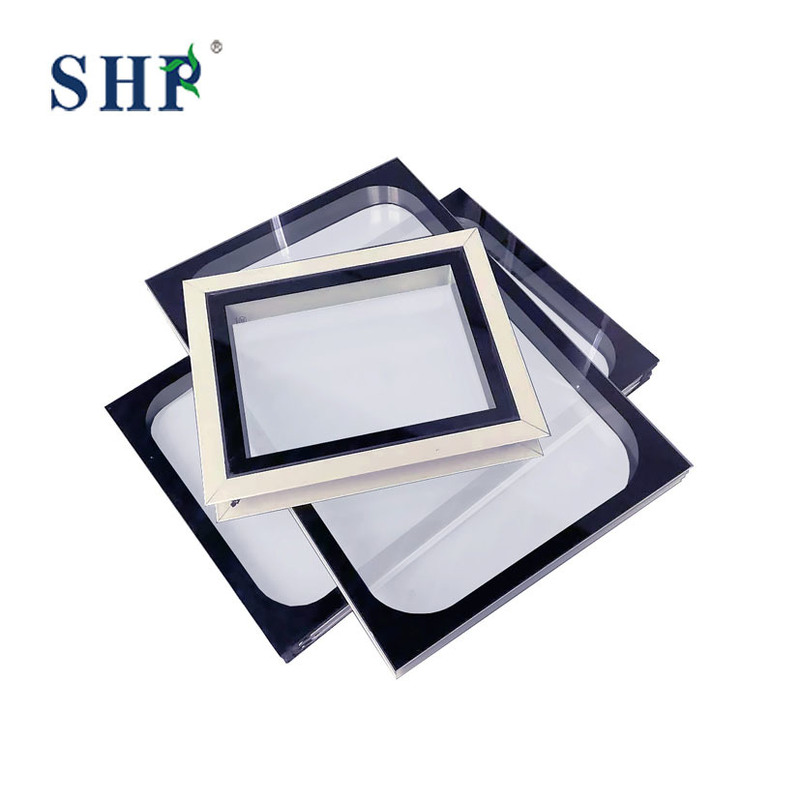

Product Overview ——Aluminum Alloy Frame Customized 50mm Metal Double Glass Cleanroom Window
![]()
Cleanroom Window
Main Specification for Cleanroom Window
| Window | Single/double tempered glass (with drying agent inside) |
| Glass Thickness | 5mm |
| Frame | Aluminum alloy |
| Size | 1000×1000mm/1000×2000mm/customized |
Additional Advantages by Design Type
| Fixed Windows | Best sealing and cost-effectiveness ;purely for observation with no risk of leakage from opening mechanisms. |
| Sloped Windows | Superior dust-shedding capability;particles cannot settle on the sloped sill,making cleaning easier and more effective. |
| Double-Glazed Windows | Excellent thermal insulation;helps maintain stable temperature and humidity levels and prevents condensation. |
| Windows with Pass-Throughs | Combines observation with transfer functionality;allows for both viewing and the transfer of small items via an integrated hatch,improving workflow efficiency. |
Common Types
- Single-layer Cleanroom Window
Simple structure, suitable for cleanrooms with low cleanliness requirements (e.g., Class 10000 and below) and small internal and external pressure differences. It is cost-effective and easy to install.
- Double-layer Insulated Cleanroom Window
Composed of two layers of tempered glass with a sealed air layer in the middle, it has better thermal insulation and sound insulation performance while ensuring airtightness. It is suitable for cleanrooms with strict temperature control requirements (e.g., semiconductor chip manufacturing workshops) or noisy external environments.
- Safety Explosion-proof Cleanroom Window
Using tempered glass or laminated glass, it can prevent glass fragments from splashing and causing pollution or personnel injury in case of accidental impact or explosion. It is widely used in biopharmaceutical sterile workshops and chemical experiment cleanrooms.
- Embedded Cleanroom Window
The window is embedded into the cleanroom wall, and the surface is flush with the wall, avoiding dead corners and reducing the accumulation of dust, which is suitable for high-level cleanrooms (e.g., Class 100 and above) with strict requirements for airflow organization.
Related Products
Company Profile
![]()
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Certification
![]()
Our Customers
![]()
Customer Photos
![]()
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
