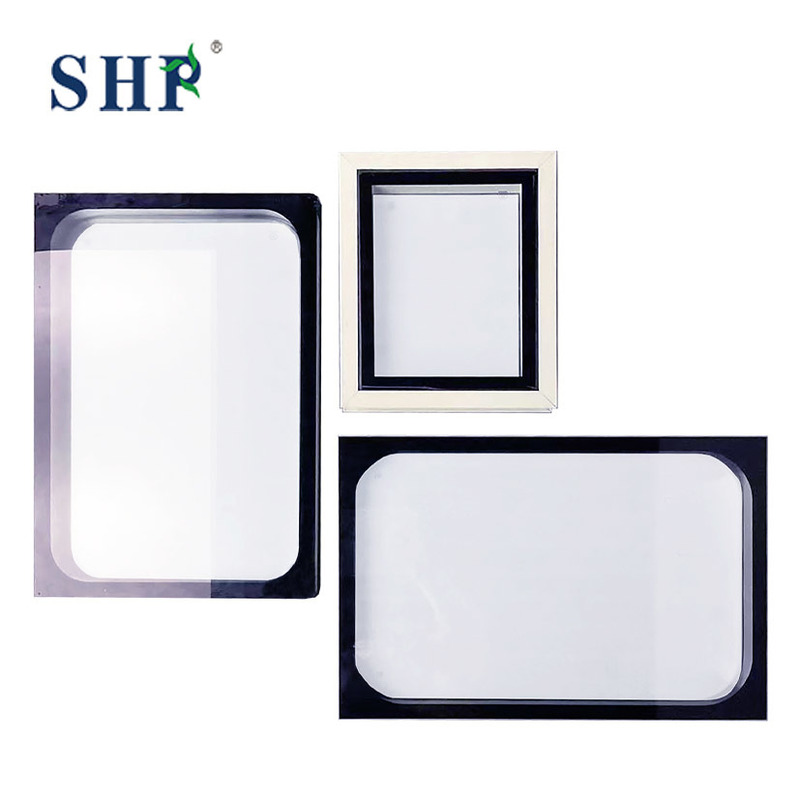

Sealed Cleanroom Viewport Window Glass For Safe Process Observation 5mm
| Brand Name: | SHP |
| MOQ: | 50 square meters |
| Price: | $500.00/square meters 50-499 square meters |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Sealed Viewport Window
,Magnetic Lock single tempered glass
,Observation double tempered glass 5mm
Product Overview ——Customizable HEPA Filter Windows for Turnkey Solutions Clean Room Project
Cleanroom Window
Main Specification for Cleanroom Window
| Window | Single/double tempered glass (with drying agent inside) |
| Glass Thickness | 5mm |
| Frame | Aluminum alloy |
| Size | 1000×1000mm/1000×2000mm/customized |
Additional Advantages by Design Type
| Fixed Windows | Best sealing and cost-effectiveness ;purely for observation with no risk of leakage from opening mechanisms. |
| Sloped Windows | Superior dust-shedding capability;particles cannot settle on the sloped sill,making cleaning easier and more effective. |
| Double-Glazed Windows | Excellent thermal insulation;helps maintain stable temperature and humidity levels and prevents condensation. |
| Windows with Pass-Throughs | Combines observation with transfer functionality;allows for both viewing and the transfer of small items via an integrated hatch,improving workflow efficiency. |
Core Design Requirements
- Airtightness & Contamination Prevention
Cleanroom windows adopt seamless sealing structures (e.g., silicone gaskets, vacuum sealing) to prevent unfiltered air, dust particles, or microorganisms from entering or escaping the cleanroom. The frame is usually made of anodized aluminum alloy or stainless steel, which has good corrosion resistance and is not easy to shed particles.
- Non-shedding Surface
The window glass is specially treated to avoid particle shedding, and the surface is smooth and easy to clean, which can resist the erosion of disinfectants (such as ethanol, hydrogen peroxide) commonly used in cleanrooms.
- Pressure Resistance & Stability
Cleanrooms usually maintain a positive pressure relative to the outside environment to prevent external pollution from intruding. Cleanroom windows need to withstand the pressure difference between the inside and outside of the room without deformation, ensuring long-term stable operation.
- Transparency & Clarity
To meet the needs of real-time observation of the production or experimental process inside the cleanroom, the glass has high light transmittance (usually above 90%) and no obvious distortion.
