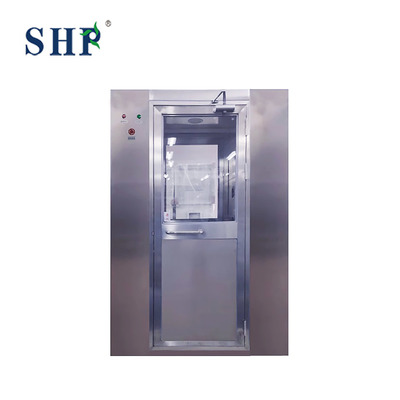

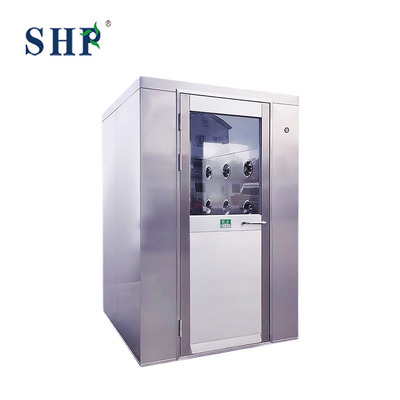

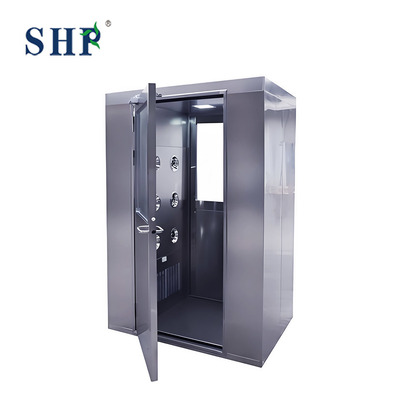

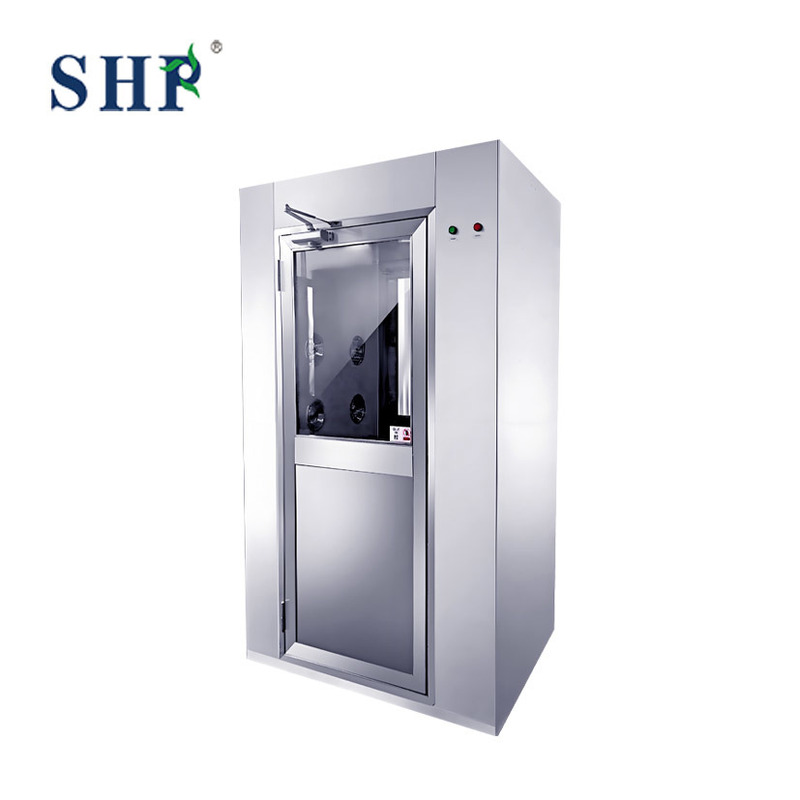

Hospital Clean Room 1400 W *1500 D *2100 H SS304/SS316 Air Shower Room with CE and GMP

Product Overview

The air shower is a mandatory purification passage for cleanrooms. Its operational process is as follows: after personnel or materials enter, the dual doors interlock, and the system activates high‑speed clean airflow to perform an all‑around blow‑off, effectively removing surface particles. The contaminated air after showering is recovered through the bottom, filtered, and the clean air is recirculated, completing the final purification step before entry.

How the Air Shower Works

An air shower is positioned between the gowning area and the controlled cleanroom area as part of the personnel purification route.

• 1. Personnel Entry
  Personnel proceed into the air shower from the gowning or lower-cleanliness side.
• 2. Door Interlocking
  Both the entrance and exit doors are controlled by an interlocking system to help avoid simultaneous opening during normal operation.
• 3. Air Shower Cycle
  Filtered air, supplied through directional nozzles, removes loose particles from exposed surfaces of cleanroom garments.
• 4. Air Recirculation and Filtration
  The air circulation system collects air and passes it through the filtration system according to the equipment configuration.
• 5. Cleanroom Entry
  Once the programmed shower cycle has been completed, the exit door can be released and personnel proceed into the controlled area.

The specific shower cycle, airflow configuration, filtration arrangement and control logic should be selected to match the cleanroom design and project requirements.

Features at a Glance

• Core Purification Function
• Airlock Barrier Function
• Pressure Differential Maintenance
• Contamination Control Function
• Air Recirculation Function
• Management & Alert Function

Main Components & Construction

Technical Specifications

Main Specification for Air Shower

Air Shower Types & Configurations

Cleanroom Applications

Air shower rooms are conventionally integrated into the personnel purification route between gowning areas and controlled cleanroom spaces.

Applications usually include:

• Pharmaceutical processing
• Medical centres and healthcare facilities
• Laboratory work areas
• Electronics and semiconductor plants
• Food manufacturing and beverage processing
• Production of cosmetics
• Precision manufacturing processes

The air shower configuration should be selected in conjunction with the cleanroom layout, personnel flow, cleanliness requirements and operating procedures, not as an isolated equipment component.

Engineering & Customization Process

• 1. Requirement Analysis
  Look at cleanroom classification, personnel flow, available installation space and operating requirements.
• 2. Configuration Design
  Based on the project, select the air shower type, dimensions, door arrangement, filtration and control configuration.
• 3. Manufacturing
  Construct and assemble the chamber, filtration system, fan section, doors and control components according to the approved configuration.
• 4. Factory Inspection
  Inspect the assembled unit, its electrical system, door operation, interlock function and other applicable items before shipment.
• 5. Installation & Commissioning
  Support the installation, connection and functional commissioning on site according to project requirements.
• 6. Documentation
  Provide applicable product drawings, operation instructions, maintenance information and inspection records.

Testing & Validation

• Visual evaluation
• Checking of dimensions
• Door working test
• Door interlock verification
• Fan working test
• Lighting functioning test
• Control panel verification
• Airflow testing
• HEPA integrity verification where applicable

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Customer Photos

Our Certification

Products Description

• Slide rail style door closer:A slide rail door closer for air showers is a high-durability, high-precision core functional component designed to safeguard cleanroom environments.
• LCD control screen:The LCD control panel is not only the "intelligent brain" of the air shower but also a critical component that enhances equipment reliability, operational efficiency, and management standards.
• Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
• High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.

Related Products

Our Customers

Why Choose SHP

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
