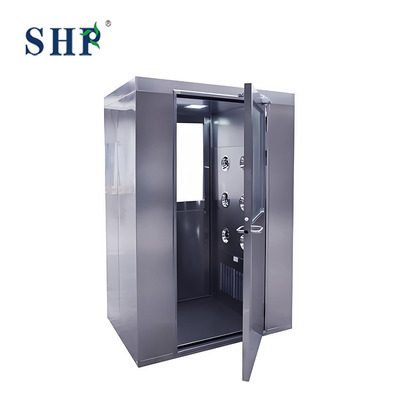

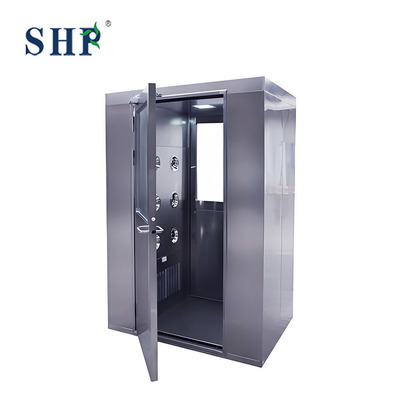

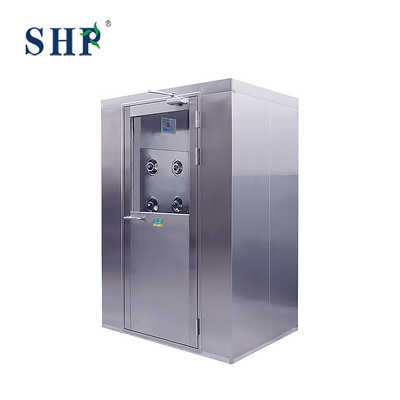

Adjustable Shower Time Personnel Decontamination Air Shower with 99.995% HEPA Filter

Product Overview

Simply put, an Air Shower is like the "dust-removal security gate" for a cleanroom. Anyone or any material entering the cleanroom must pass through this checkpoint first — it blows out high-speed purified air to remove dust, hair, and other contaminants attached to people’s clothes and material surfaces. Meanwhile, its two doors cannot be opened at the same time, which prevents unfiltered dirty air from directly getting into the cleanroom. With an air shower in place, the clean environment inside the cleanroom can be maintained consistently to meet the requirements of production and experiments.

How the Air Shower Works

As a rule, an air shower is installed between the gowning area and the controlled cleanroom area as part of the personnel purification route.

• 1. Personnel Entry
  Personnel pass into the air shower from the gowning or lower-cleanliness side.
• 2. Door Interlocking
  To help prevent both doors from opening at once during normal operation, the entrance and exit doors are controlled by an interlocking system.
• 3. Air Shower Cycle
  Filtered air passes through directional nozzles to dislodge loose particles from exposed surfaces of cleanroom garments.
• 4. Air Recirculation and Filtration
  Air is recovered by the circulation system and passed through the filtration system according to the equipment configuration.
• 5. Cleanroom Entry
  Following the programmed shower cycle, the exit door can be released and personnel move into the controlled area.

The actual shower cycle, airflow configuration, filtration arrangement and control logic ought to be selected according to the cleanroom design and project requirements.

Features at a Glance

• 360° Surface Dust Removal
• Air Curtain Barrier for Contamination Isolation
• Mandatory Purification Control
• Intelligent and Automated Operation
• Data Traceability and System Linkage
• Scenario-adaptive Purification

Main Components & Construction

Technical Specifications

Main Specification for Air Shower

Air Shower Types & Configurations

Cleanroom Applications

As a rule, air shower rooms are integrated into the personnel purification route between gowning areas and controlled cleanroom spaces.

Applications commonly include:

• Pharmaceutical sector
• Medical and healthcare settings
• Laboratory spaces
• Electronics manufacturing and semiconductors
• Beverage and food production
• Cosmetics and personal care production
• Precision parts manufacturing

Together with the cleanroom layout, personnel flow, cleanliness requirements and operating procedures, the air shower configuration should be selected rather than treated as an isolated equipment component.

Engineering & Customization Process

• 1. Requirement Analysis
  Go over the cleanroom classification, personnel flow, available installation space and operating requirements.
• 2. Configuration Design
  Define the air shower type, dimensions, door arrangement, filtration and control configuration according to the project.
• 3. Manufacturing
  Fabricate and fit the chamber, filtration system, fan section, doors and control components according to the approved configuration.
• 4. Factory Inspection
  Before shipment, inspect the assembled unit, electrical system, door operation, interlock function and other applicable items.
• 5. Installation & Commissioning
  Provide support for site installation, connection and functional commissioning according to project requirements.
• 6. Documentation
  Deliver applicable product drawings, operation instructions, maintenance information and testing records.

Testing & Validation

• Visual assessment
• Measurement check
• Door operation check
• Interlock test
• Fan operation check
• Lighting check
• Control panel operation test
• Airflow confirmation
• HEPA filter integrity testing where applicable

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Customer Photos

Our Certification

Products Description

• Slide rail style door closer:A slide rail door closer for air showers is a high-durability, high-precision core functional component designed to safeguard cleanroom environments.
• LCD control screen:The LCD control panel is not only the "intelligent brain" of the air shower but also a critical component that enhances equipment reliability, operational efficiency, and management standards.
• Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
• High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.
