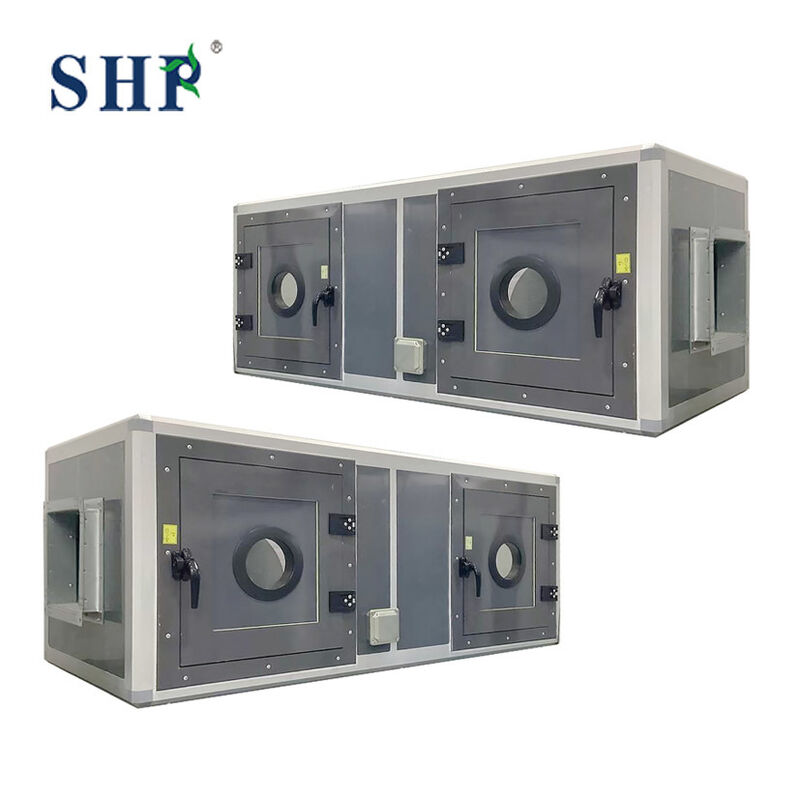

HVAC System Modular Commercial Air Handler Unit Airflow 2000 - 70000
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 set |
| Price: | $6,000.00/sets 1-4 sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
HVAC System commercial air handler
,Modular commercial air handler
,custom air handling units Customized
Product Overview ——HVAC System AHU Modular Air Handling Unit with and Airflow Range of 2000-70000

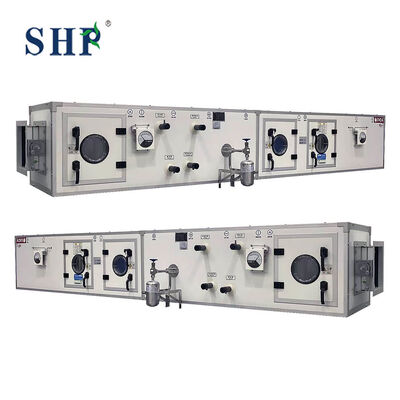

Modular Air Handing Unit
Key Characteristics&Core Functions
-
Exceptional Air Filtration Capability
- Stringent Airflow & Pressure Differential Control
- Precise Temperature & Humidity Control
- Superior Airtightness & Construction Materials
- Energy Efficiency & Heat Recovery

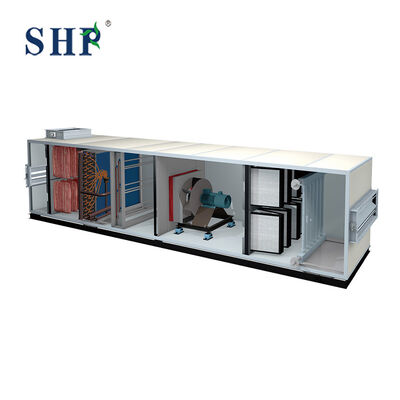

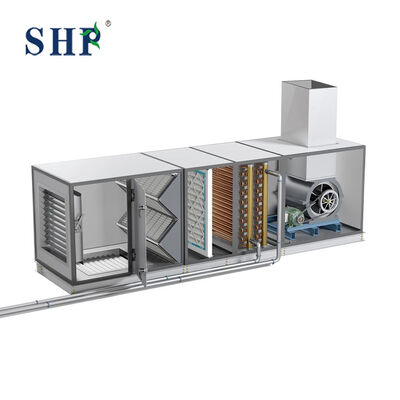

Typical System Configuration&Workflow
-
-
Outside Air Pretreatment Section: Provides initial filtration and conditioning (temperature/humidity) for outside air, sometimes incorporating energy recovery from exhaust air.
-
Mixing Section: Outside air and cleanroom return air are mixed in a controlled ratio.
-
Temperature & Humidity Conditioning Section:
-
Cooling Coil: Uses chilled water for cooling and dehumidification.
-
Heating Coil: Uses hot water or electric elements for heating.
-
Humidification Section: Injects clean steam.
-
-
Fan Section: A draw-through configuration (fan located after the coils) is more common, placing the coil section under negative pressure to prevent condensate leakage. Fans are typically VFD-controlled.
-
Intermediate & Flow Straightening Sections: Ensure even airflow distribution across filters.
-
Filtration Section: Houses medium-efficiency filters.
-
Acoustic Attenuation Section: Reduces noise generated by high-volume fans.
-
Discharge Section: Connects to ductwork leading to HEPA/ULPA filter fan units or ceiling terminals in the cleanroom.
-
Control System: The central brain, often using DDC/PLC, which integrates with room sensors (temperature, humidity, pressure) to enable automated regulation.
-
Related Products
Company Profile
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Customers
Packing and Shipping
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
