Food Automatic Canbe Customized PVC Fast Rolling Door with Customized Color Option

Product Overview

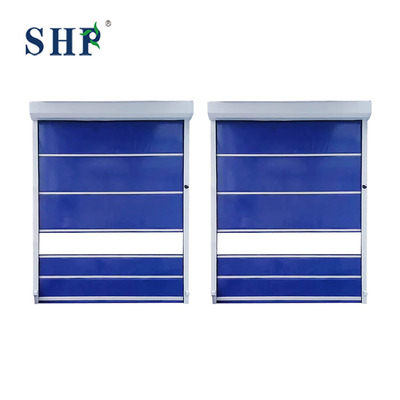

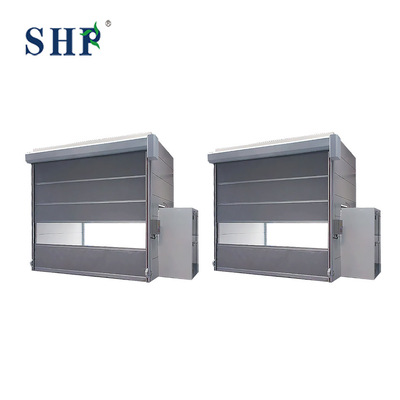

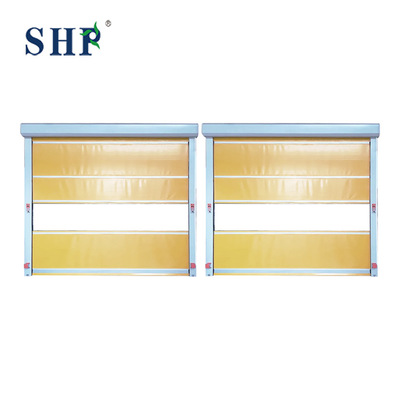

Cleanroom High Speed Roller Door

As a critical environmental control component for cleanrooms, the high-speed roller door operates at a speed of over 0.6 meters per second, enabling quick passage of personnel and materials while preventing the infiltration of external contaminants.

Technical Parameters

• Drive Motor

Equipped with dedicated servo motors for industrial high-speed doors (e.g., the German PHREP motor). The standard specification is 220V, 0.75KW, 50HZ, characterized by high efficiency, strong braking torque and long service life.

• Operating Speed

  The maximum opening speed ranges from 0.8 to 2.0 m/s (adjustable), while the closing speed is adjustable to 0.8 m/s or lower, catering to different material handling scenarios.
• Control Methods

  Standard configuration includes push-button control. Optional methods cover access control system integration, radar induction, geomagnetic loop induction, pull-cord switch and remote control, to realize intelligent and automated operation.

Products Description

• High Operating Speed

  • Typical speeds range from 1.0 to 2.5 m/s, significantly faster than standard industrial doors (~0.5 m/s).

  • Purpose: To drastically reduce the "open-door time," limiting air and contaminant exchange between controlled and non-controlled zones.

• Superior Sealing System

  • Side Seals: Durable, low-particulate door curtains (made from PVC strips or coated polyester) are flanked by anti-static sealing brushes or flexible gaskets along the vertical guides.

  • Bottom Seal: Features an inflatable or mechanical drop-down seal that engages automatically upon closure, creating an airtight seal with the floor to prevent under-door airflow.

  • Head & Track Sealing: Sealed canopy and dust-proof tracks prevent particle accumulation and ingress.

• Cleanroom-Compatible Materials

  • Curtain Material: Anti-static, anti-microbial, low-particulate-shedding, and easy-to-clean coated fabrics. Often transparent or translucent for visibility and safety.

  • Frame & Components: Constructed from anodized aluminum or stainless steel with smooth, non-porous, corrosion-resistant surfaces that withstand frequent cleaning and sanitization.

• Intelligent Control & Safety Systems

  • Drive System: Frequency-controlled motors ensure smooth acceleration, constant speed, and deceleration, minimizing vibration and noise.

  • Activation Options: Radar motion sensors, photocell beams, induction loop detectors, access control integration (keycard, code), and interlocking with cleanroom management systems.

  • Safety Features: Standard sensitive bottom edge (instant reversal upon obstruction) and optional safety light curtains to prevent closure when an object is detected.

• Pressure Differential Integrity

  • The combination of high speed and tight sealing minimizes pressure fluctuations during door cycles, acting as a critical barrier for maintaining positive or negative pressurization.

Related Products

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Our Certification

Our Customers

Packing and Shipping

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
