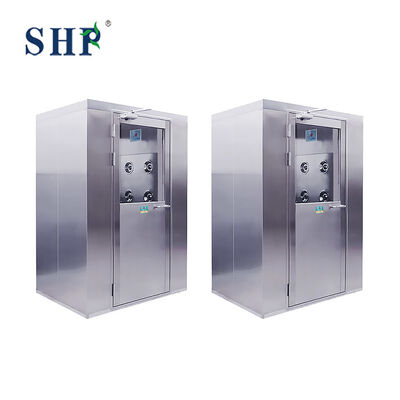

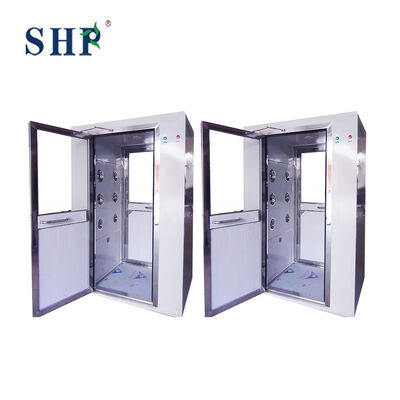

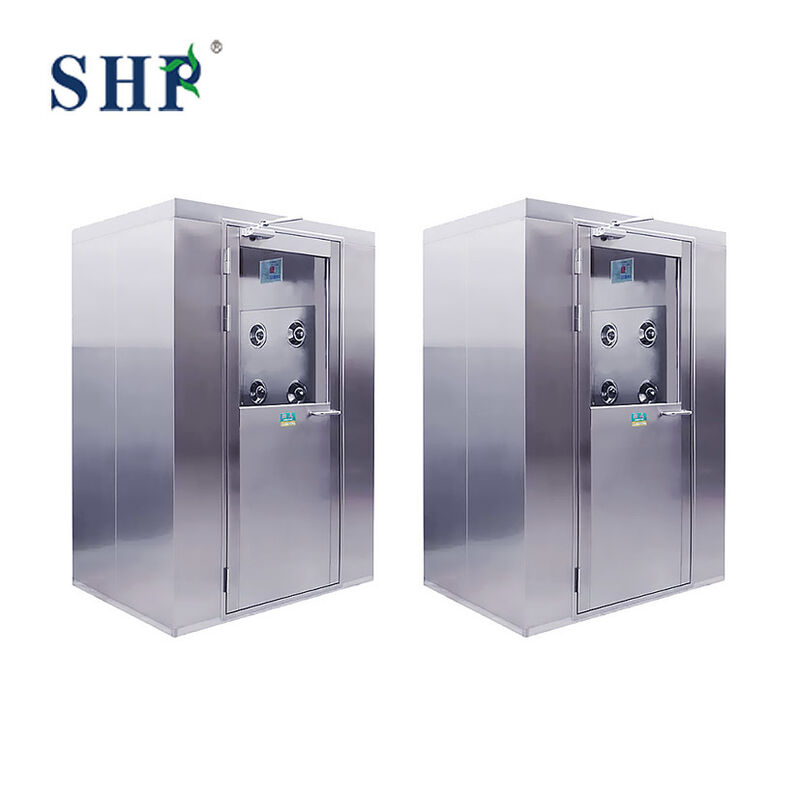

1.1KW Full Stainless Steel Double Automatic Air Shower Room with Customizable Capacity
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 set |
| Price: | $2,000.00/sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
customizable air shower room
,customizable air shower clean room
,2.2kw air shower room
Product Overview ——1.1KW Full Stainless Steel Double Automatic Air Shower Room with Customizable Capacity
An Air Shower is a mandatory purification device installed at the junction between a cleanroom and a non-clean area. Its core working mechanism is as follows: the built-in fan drives air through a HEPA/ULPA high-efficiency filter, and then the filtered air is ejected as high-speed purified airflow at a velocity of 20–30 m/s through multi-directional nozzles. This airflow performs a 360° dead-angle-free purge on personnel and materials entering the clean area, stripping off and capturing surface-adhered contaminants such as dust particles and hair. Meanwhile, relying on the double-door interlock structure, it forms an air curtain barrier to block direct air mixing between the two zones. Ultimately, it achieves the core goals of reducing the risk of introducing external contaminants and ensuring the cleanroom complies with ISO 14644 and GMP standards.
Main Specification for Air Shower
| ITEM NO. | PERSONNEL AIR SHOWER | CARGO AIR SHOWER | ||
| SHP01 | SHP02 | SHP03 | SHP04 | |
| EXTERNAL SIZE(W×D×H) mm | 1300×1000×2050 | 1500×1000×2050 | 1500×2000×2050 | 2200×2000×2050 |
| INTERNAL SIZE(W×D×H) mm | 800×920×1895 | 800×920×1895 | 800×1920×1895 | 1500×1920×1980 |
| PERSONS PER CYCLE | one person | one person | two person | N/A |
| BLOWING WAY | one side blowing | two sides blowing | two sides blowing | two sides blowing |
| BLOWER POWER | 550w × 1set | 550w × 2set | 550w × 4set | 750w × 2set |
| NO. OF NOZZLES | 6 pcs | 12 pcs | 24 pcs | 24 pcs |
| LED LIGHTS | 20w × 1pcs | 20w × 1pcs | 20w × 2pcs | 20w × 1pcs |
| PRIMARY AIR FILTER | G3,G4 | |||
| HEPA FILTER EFFICIENCY | H14(99.99％@0.3μm) | H14(99.99％@0.3μm) | H14(99.99％@0.3μm) | H14(99.99％@0.3μm) |
| SIZE OF HEPA FILTER | 700×610×100 1pcs | 700×610×100 2pcs | 700×610×100 4pcs | 700×610×100 4pcs |
| SPRAYING WIND SPEED | 20-25m/s | |||
| SHOWER TIME | 0-99s adjustable | |||
Features at a Glance
- 360° Dead-angle-free Dust Removal with High Purification Efficiency
- Dual Isolation Against Contamination via Double-door Interlock + Air Curtain Barrier
- Strong Versatility to Meet Multi-scenario Requirements
- Intelligent and Automated Operation to Improve Passage Efficiency
- Compliance with Industry Standards to Facilitate Compliant Production
- Low Maintenance Cost with Stable and Reliable Operation
Products Description
- Slide rail style door closer:A slide rail door closer for air showers is a high-durability, high-precision core functional component designed to safeguard cleanroom environments.
- LCD control screen:The LCD control panel is not only the "intelligent brain" of the air shower but also a critical component that enhances equipment reliability, operational efficiency, and management standards.
- Stainless steel nozzle:For cleanrooms with high standards, high-frequency usage, and stringent certification requirements (such as those in , biotechnology, microelectronics, precision instruments, etc.), stainless steel nozzles are an essential and wise choice. They offer exceptionally long service life, nearly zero maintenance costs, and irreplaceable reliability.
- High efficiency filter:The HEPA filter is the "lungs" of the air shower, directly determining the quality of the blown air. Its ultra-high filtration efficiency, stable performance, and compliance are non-negotiable advantages.
Related Products
Company Profile
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Certification
Customer Photos
Packing and Shipping
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
