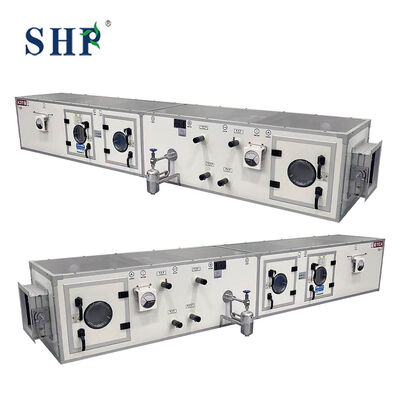

Product Overview  ——Central Unit Air Handling Unit with Heat Recovery and Remote Control LCD Touch Screen

Air Handing Unit

Features at a Glance

•  Air Mixing & Proportioning

  • Purpose: To balance energy efficiency with indoor air quality (IAQ).

  • How it Works: Dampers automatically adjust the ratio of outside fresh air and indoor return air. This allows for "free cooling/heating" using return air to save energy while ensuring sufficient fresh air intake for occupant health and ventilation requirements.

•  Air Filtration & Purification

  • Purpose: To protect downstream equipment and improve IAQ by removing contaminants.

  • How it Works: Air passes through a series of filters.

    • Pre-filter: Traps large particles like dust and lint, protecting coils and fans.

    • Medium-efficiency filter: Removes finer particles (e.g., pollen, mold spores), common in commercial buildings.

    • High-efficiency/HEPA/Chemical filters (Optional): Used in critical environments like hospitals and labs to remove PM2.5, bacteria, viruses, or gaseous pollutants.

• Air Temperature & Humidity Control

This is the core conditioning process, achieved via heat exchangers and humidifiers.

• • Cooling & Dehumidification: Air passes over a cooling coil carrying chilled water (~7°C) from a chiller or direct-expansion refrigerant. The air cools below its dew point, causing moisture to condense and drain away.

  • Heating: Air passes over a heating coil carrying hot water from a boiler or using electric resistance elements.

  • Humidification: In dry climates or during winter, a humidifier (steam, ultrasonic, or evaporative) adds precise moisture to the air.

• Air Movement & Distribution

  • Purpose: To provide the motive force for airflow and deliver it to the occupied spaces.

  • How it Works:

    • Fan: The "heart" that provides the pressure to move air through the ductwork. Modern AHUs use Variable Frequency Drive (VFD) fans to modulate airflow based on demand, saving significant energy.

    • Silencer/Attenuator: Reduces noise generated by the fan and airflow.

    • Conditioned air is then distributed quietly and evenly to rooms via ductwork and diffusers.

•  Energy Recovery (A Key Feature in High-Efficiency AHUs)

  • Purpose: To dramatically reduce heating and cooling energy consumption.

  • How it Works: A heat recovery device (e.g., heat wheel, plate heat exchanger) is placed where the exhaust air and fresh intake air streams cross. It transfers thermal energy from the exhaust air to pre-condition the incoming fresh air, potentially reducing loads by over 60%.

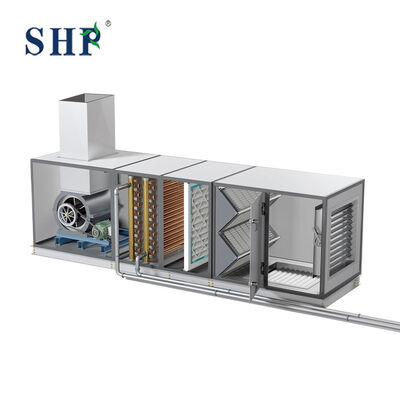

Products Description

• • Fan Section: The "heart" — provides the motive force to move air.

  • Filter Section: The "cleaning station" — contains pre-filters and finer filters to ensure air cleanliness.

  • Coil Section: The "conditioning station" — uses hot water or steam coils for heating, and chilled water or refrigerant coils for cooling/dehumidifying.

  • Humidifier Section: Adds moisture to the air when required.

  • Mixing Chamber with Dampers: Controls the proportions of fresh and recirculated air.

Related Products

Company Profile

As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.

As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.

Our Certification

Our Customers

Packing and Shipping

FAQ

Q1: Where is your company?

A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.

Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.

Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.

Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.

Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.

Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
