Customized Color Hospital Lab Pharmaceutical Clean Room Door Stainless Steel
| Brand Name: | SHP |
| Model Number: | Customized |
| MOQ: | 1 set |
| Price: | $100.00 - $180.00/sets |
| Payment Terms: | L/C,T/T |
| Supply Ability: | ≥1 set |
Customized Color pharmaceutical clean room door
,Stainless Steel pharmaceutical clean room door
,Hospital stainless steel clean room doors
Customized Color Stainless Steel Door For Hospital Lab Pharmaceutical Clean Room Door
Product Overview

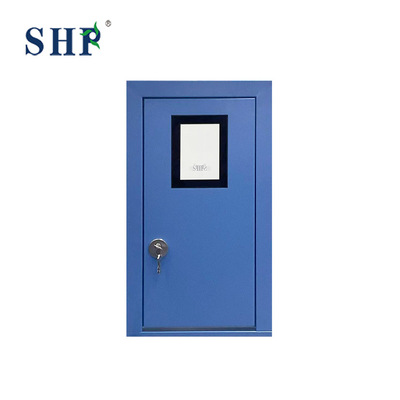

Cleanroom Door
Main Specification for Cleanroom Swing Door
| Item | Technical Parameter Description | |||
| Door Frame Shape | Flat frame type,encircle frame type,clamping type,plug-in type(customized according to customer requirements) | |||
| Material | Electrogalvanized steel plate,1.5mm for door frame,1.0mm for door panel,1.2mm for inner reinforcing plate | |||
| Filler | Flame retardant paper honeycomb | Fireproof aluminum honeycomb | Rock wool | Polyurethane foam |
| Door Leaf Window | Square Glass | Oval glass | Square outside and round inside glass | Single,double glass |
| Hardware Accessories | Locks:separate execution lock,compact execution lock,elbow press lock,escape lock,touch bead lock,etc. | |||
| Hinge:detachable type,semi-hidden adjustment type, spring hydraulic type,hidden type,etc. | ||||
| Sealing device:door leaf self-adhesive type,door frame embedded type,door bottom automatic lifting type. | ||||
| Surface Treatment | Spraying(outdoor fluorocarbon powder,electrostatic powder),stoving varnish,paint-free(color can be customized according to the customer requirements) | |||
| Wind Resistance Performance P3(KPa) | 2.8 Air Pressure 100.8KPa | Airtightness q1=1.0-q1=0.6 | ||
| q(m³/(m-h)) q2=2.1-q1=1.5 | ||||
| Door Leaf Weight ㎡/KG | Paper honeycomb | Aluminum honeycomb | Rock wool | Polyurethane |
| 21.5KG | 22.3KG | 24.5KG | 26.0KG | |
Features at a Glance
-
Pressure Differential Maintenance: The door's core function is to act as an airtight seal when closed, preserving the positive pressure (to keep contamination out) or negative pressure (to keep hazards in) of the cleanroom. This prevents cross-contamination between zones.
-
Airflow & Barrier Integrity: High-quality perimeter seals (magnetic, compression gasket, or inflatable) create a reliable barrier, minimizing leakage of unfiltered air that could disrupt unidirectional airflow patterns and particle counts.
Products Description
-
Vision Panel: A large, integrated window (safety glass or polycarbonate) provides critical visibility for safety (avoiding collisions) and workflow observation.
-
Self-Closing Mechanism: Equipped with a reliable door closer or spring hinge to ensure the door automatically and consistently returns to its sealed position after use.
-
Interlocking Capability: Can be integrated with an electromechanical interlock system to prevent two doors (e.g., in an airlock) from being open simultaneously, which would compromise pressure cascades.
-
Access Control Integration: Prepared for fixtures like card readers, keypads, or biometric scanners to restrict and log entry.
Related Products
Company Profile
As a leading supplier of clean room system and clean room products,SHP is an organization that prides itself both on technical expertise as well as next level customer care.SHP offers Cleanroom Solutions to meet our clients' particular requirements specialized for pharmaceutical,biotechnology and microelectronic cleanrooms.We also provide a range of Clean Room products including wall panel,door&window and a series of clean room equipment.
As an ISO 9001:2015 certified organization,we are committed to continually improving our customer service programs while meeting or exceeding your product quality criteria.With our comprehensive customer solution offerings,excellence in products,and decades of technical expertise,we are confident that SHP can match the best to your application.
Our Certification
Our Customers
Customer Photos
Packing and Shipping
FAQ
Q1: Where is your company?
A1:Our company is located in Suzhou City, close to Shanghai. It's a 1.5-hour drive from PVG Airport.
Q2: Are you a manufacturer or a trading company? What can I buy from you?
A2: We are manufacturers. We focus on cleanroom projects, air showers, FFUs, through boxes, dosing rooms, laminar flow hoods and benches, AHUs, and sealed doors and Windows.
Q3:When is your delivery time?
A3: If your cleanroom project includes AHU, the delivery time is 35 days. If you purchase goods without an AHU, the delivery time is 10 days.
Q4: How long is your warranty period? What kind of after-sales service can you offer?
A4: Our warranty period is two years after the completion of the project. During the warranty period, if there are any problems, we will replace it. If you can't handle it, we will send an engineer to solve it for free.
Q5:Can you conduct cleanroom validation?
A5: Yes, we can offer documentaries of DQ, IQ, OQ and PQ. Still fat & Sitting. Product operation manual, maintenance guide and a complete set of cleanroom drawings.
Q6:What are your advantages?
A6: We have a complete technical team consisting of 12 senior cleanroom and HVAC engineers to provide you with technical support. We have completed over 2,100 cleanroom projects in China and overseas. Such as Japan, Indonesia, Thailand, Bangladesh, India, North Macedonia, Saudi Arabia, Yemen, Russia, Moldova, Switzerland, Norway, the United Kingdom, Spain, France, Belgium, Kuwait, Tunisia, Mauritius, Sri Lanka, Mongolia, Philippines, Nepal, Sudan, Somaliland, Australia, New Zealand, Canada, Algeria, Egypt, Singapore, and the United States.
